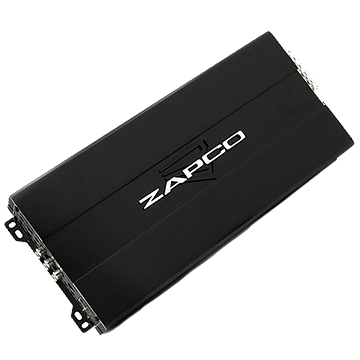

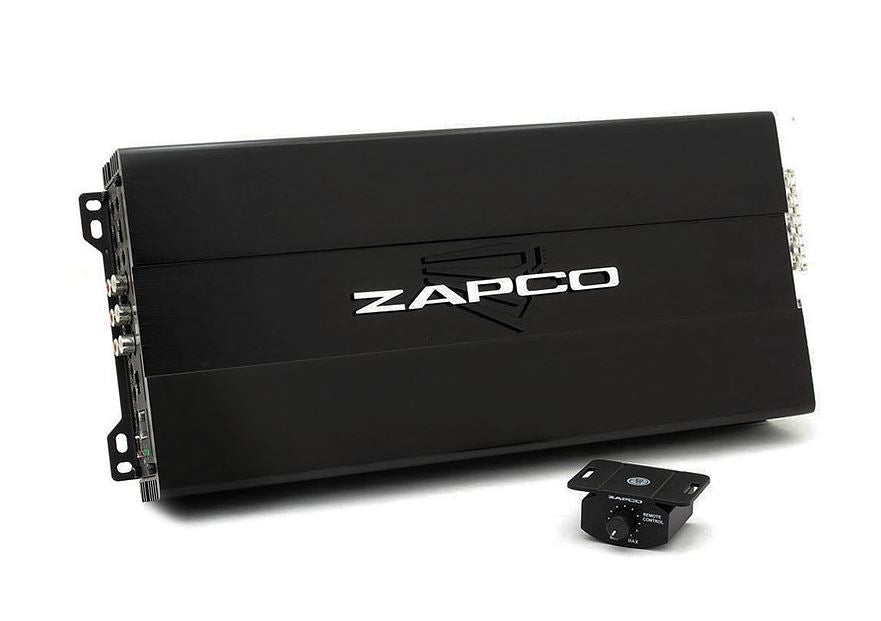

Zapco ST-105D

5-Channel, Full Range, Class D

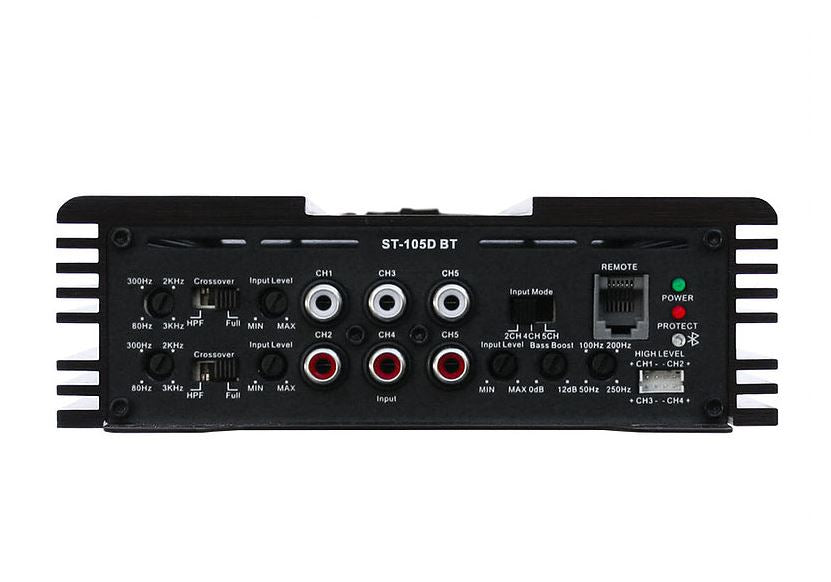

RCA and Speaker Level inputs
Bluetooth music streaming
Variable input gain control
Variable electronic crossover
Variable bass boost control

Because Sound Matters.

Committed to Excellence
ZAPCO is dedicated to the pursuit of audio fidelity. Our prime objectives are to design and manufacture audio products of unsurpassed quality, provide unparalleled support and service for these products, and conduct business in a manner that will enhance the quality of life for all involved.

Experience: Knowledge From Doing
There is absolutely no substitute for experience; that is a simple fact of life. Another simple fact is that ZAPCO has, for over forty-two years, been the leader in defining quality standards for the car audio industry. These years of experience have led to a thorough understanding of the challenges that are unique to the world of car audio. ZAPCO’s relentless quest for sonic purity consistently yields imaginative designs that utilize the most innovative technologies. The resulting products set the criteria by which all others in the industry are judged.

Zapco ST-105D Specifications

Power @ 4Ω: 4 x 120 watts RMS, Plus 1 x 250 watts RMS
THD @ Rated Power < 0.5%THD
Power @ 2Ω: 4 x 200 watts RMS, Plus 1 x 380 watts RMS
Power Bridged @ 4Ω: 2 x 360W RMS, Plus 1 x 350 watts RMS
Signal to Noise Ratio > 85dB
THD + Noise < 0.5%
Frequency Response 15Hz to 30KHz ±1dB
Input Sensitivity .25v to 5v
Dimensions in mm: 160(W) x 52(H) x 300(L) Overall: 160(W) x 52(H) x 342(L)
