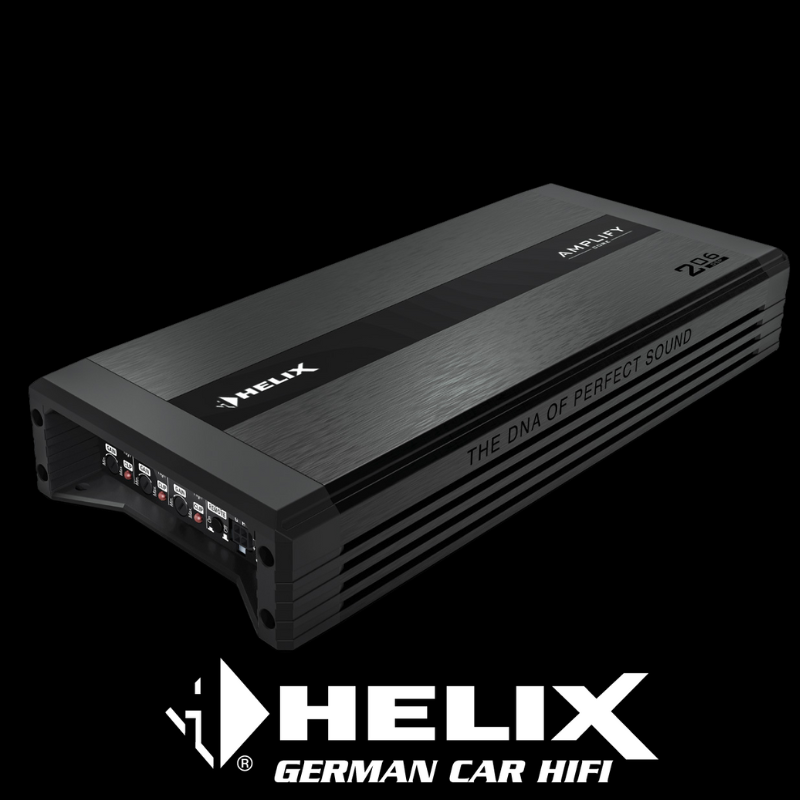

Helix Amplify 206 DSP

Highly efficient amplifier with high output power of up to 240 Watts RMS @ 2 Ohms per channel for impressive dynamics and powerful sound
Integrated 8-channel DSP with precise adjustment options such as equalizer, time alignment, and filters for optimal adaptation to the vehicle
Modern 64 Bit fixed-point DSP architecture and high-quality AD/DA converters for clean signal processing and detailed reproduction
Flexible routing of DSP channels for configuring 2- or 3-way front systems, rear speakers, or subwoofer setups
Bridgeable amplifier channels for driving powerful woofer or subwoofer
Smart 6-channel highlevel input with ADEP.3 for trouble-free integration into OEM sound systems
VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems
ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:

AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
SFX Sound Effects – Augmented Bass Processing, RealCenter & Co.

Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
Optical digital input in SPDIF format and two processed line outputs with max. 8 Volts output voltage
Very compact design for space-saving installation
Start-stop capability down to 6V supply voltage for uninterrupted performance
Auto Remote switch for amplifier activation without the need for an external remote signal
Advanced Class D concept for high efficiency and low heat dissipation

Power RMS ≤ 1% THD+N	@ 14.4 V
- @ 4 Ohms	6 x 100 Watts
- @ 2 Ohms	6 x 190 Watts
- @ 1 Ohm	-
- bridged @ 4 Ohms	3 x 380 Watts
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 240 Watts RMS @ 2 Ohms Up to 480 Watts RMS @ 4 Ohms bridged
Amplifier technology	Class D

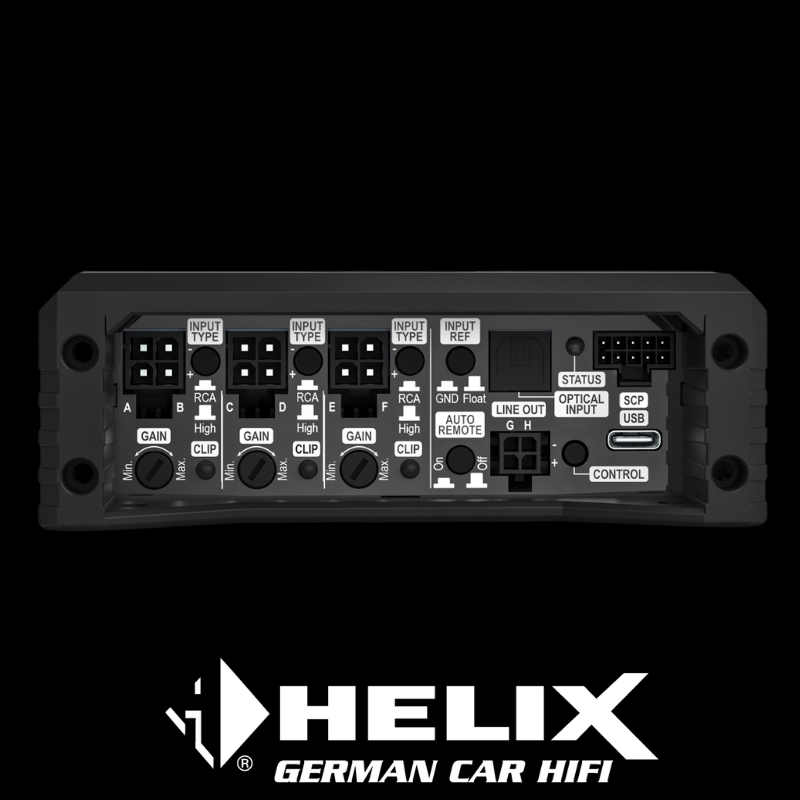

Inputs	6 x RCA / Cinch or 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 2 x Remote In
Input sensitivity	RCA / Cinch:1 - 8 Volts Highlevel: 2 - 16 Volts
Input impedance	RCA / Cinch 4,8 kOhms Highlevel 9 - 33 Ohms or 20 kOhms with ADEP.3

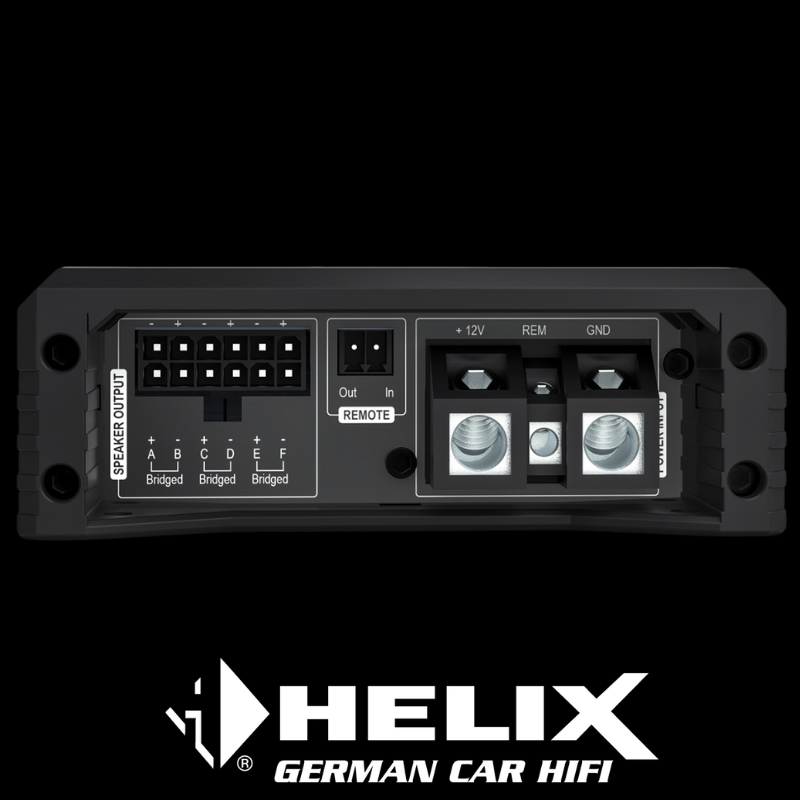

Outputs	6 x Speaker output 2 x RCA / Cinch 1 x Remote Out
Output voltage RCA / Cinch	8 Volts
Frequency response	20 Hz - 22,000 Hz
DSP resolution	64 Bit
DSP power	1 x 295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	1 x Audio signal processor
Signal converters	A/D: BurrBrown 24 Bit D/A: AKM 24 Bit
Signal-to-noise ratio (A-weighted)	Analog input: 99 dB @ full power Digital input: 102 dB @ full power
Distortion (THD @ 1 kHz, 1 W into 4 Ohms)	< 0.005 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms)	< 0.02 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms)	-
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)	-
Damping factor	70
Operating voltage	10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Power rating	DC 12 V ⎓ 93 A max.
Idle current	1,100 mA
Max. remote output current	500 mA
