Helix CB K165.2-S3
Helix CB K165.2-S3

Helix CB K165.2-S3

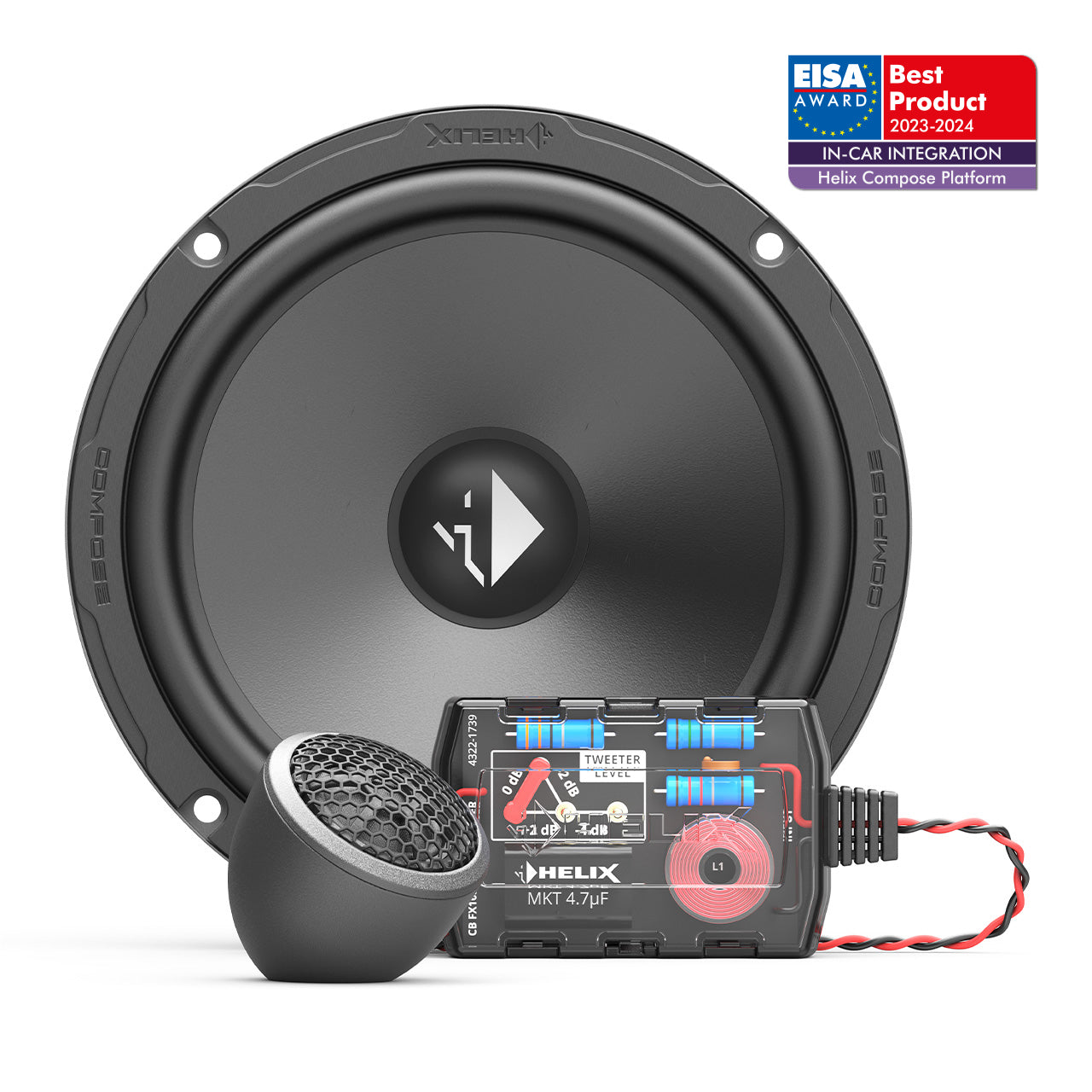

CB K165.2-S3

2-way component speaker system.



  • Size: 165mm | 6.5"
  • Driver Power | Watts RMS: 80
  • Voice Coil x Impedance: 1 x 3Ω
  • Type: Component | 2-Way
  • Sensitivity 2.83V/1m | dB: 92
  • Installation Depth | mm: 61

– Nominal configuration: two-way 6.5″ & 0.75″ passive component set
– Continuous power handling: 80 Watts
– Maximum power handling: 120 Watts
– Voice coil diameter: 20 mm
– Frequency response: 60 Hz – 22000 Hz
– Sensitivity: 92 dB
– DC resistance (Re): 3 Ohms
– Resonant frequency (Fs): 62 Hz
– Xmax: +/- 2.5 mm
– Compliance (Vas): 14.5 l
– Total Q (Qts): 0.75
– Mechanical Q (Qms): 4.5
– Electrical Q (Qes): 0.9

Physical Specifications
– Mounting diameter: 143 mm
– Mounting depth: 61.4 mm
– Weight: 1.2 kg


Regular price$499.00
/
