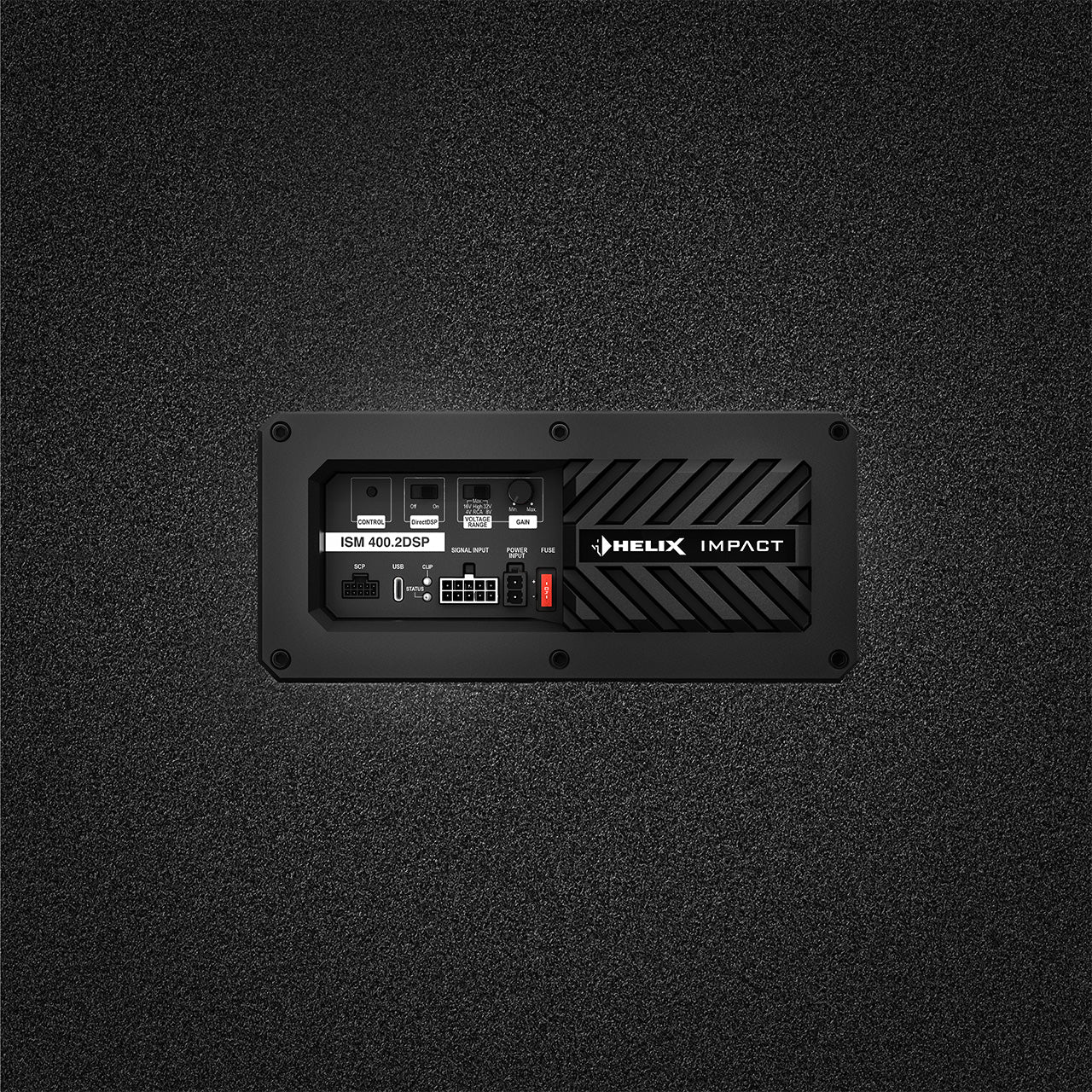

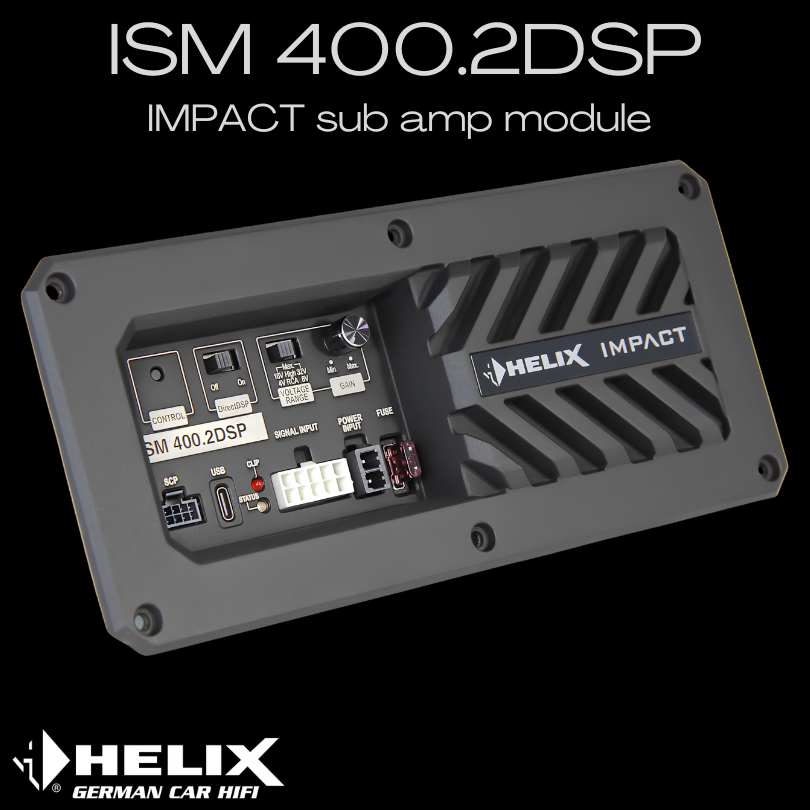

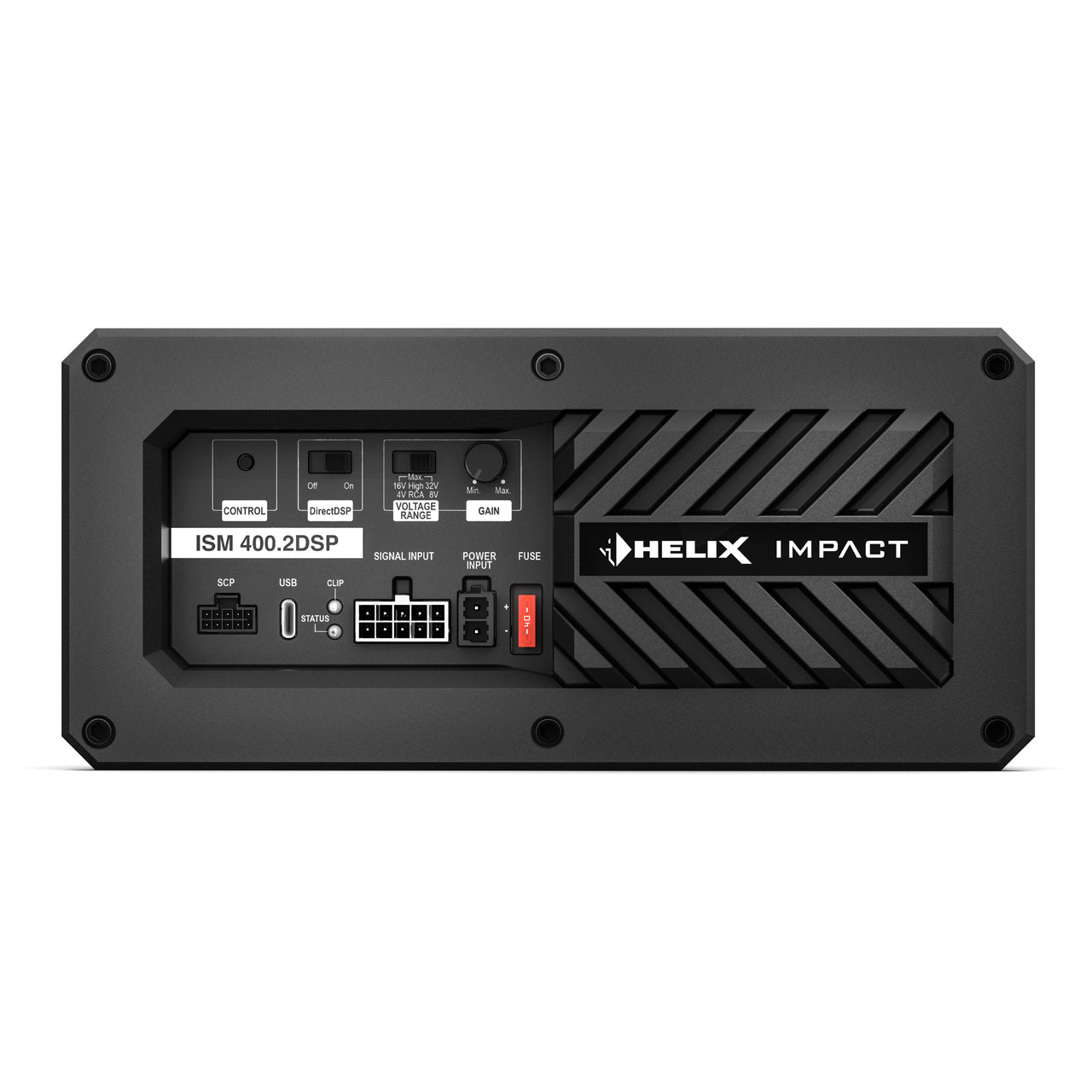

Impact ISM 400.2DSP

"Slot in" upgrade amplifier module

2-channel amplified subwoofer module with 1-channel DSP for high-quality subwoofer upgrades in modern vehicles, delivering powerful yet controlled bass:

Ideal for targeted subwoofer upgrades in factory-installed sound systems thanks to integrated DSP and high power stereo highlevel input with up to 32 V RMS input sensitivity

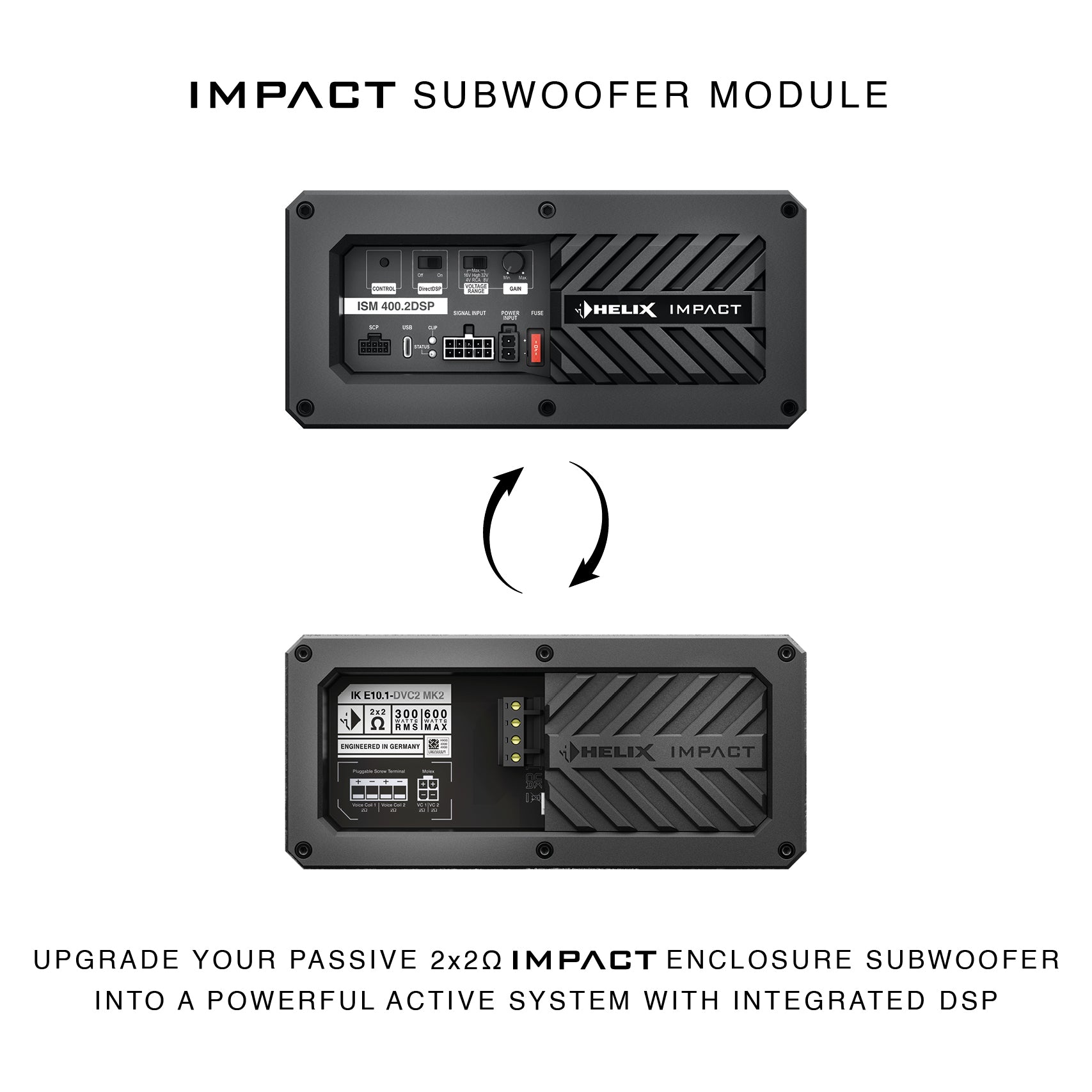

Direct upgrade of passive 2 x 2 Ω IMPACT enclosure subwoofers by simply replacing the subwoofer connection terminal
Perfect starting point for custom-made active subwoofer solutions

Up to 460 W RMS output power at 2 x 2 Ω for driving powerful subwoofers
Start-Stop capable power supply with an extended input voltage range up to 18 V – ideal for modern electric vehicles

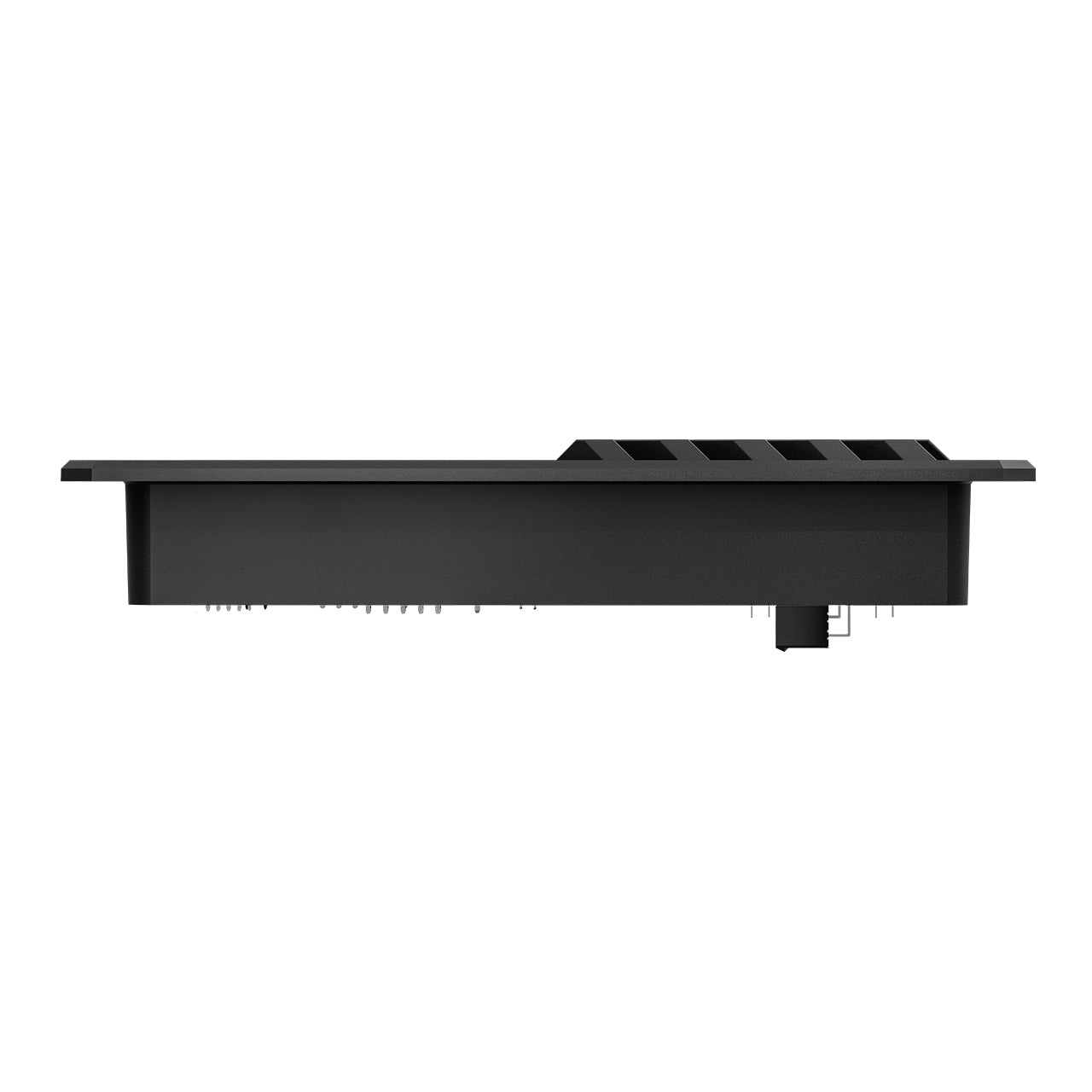

Very compact design with low heat dissipation thanks to extraordinary efficiency
Extremely powerful 64 Bit “fixed-point” Audio DSP and high-quality AD / DA converters for clean signal processing and maximum bass performance
Smart highlevel input with ADEP.3 for trouble-free integration into OEM sound systems
Additional auto turn-on via music signal for maximum compatibility with factory sound systems
ACO – Advanced 32 Bit CoProcessor platform for system an
AISA (Advanced Input Signal Analyzer) and InputEQ AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
Augmented Bass Processing
Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
DirectDSP function – the input signal is routed unprocessed and unfiltered directly to the output stage of the amplifier
Maximum control with DSP PC-Tool 6 – professional software for precise configuration and accurate sound tuning in the vehicle, including presets for IMPACT enclosure subwoofers

https://www.audiotec-fischer.de/media/video/ac/4d/a3/ISM-Terminal-Animation.mp4

Power RMS ≤ 1% THD+N @ 50 Hz
- @ 4 Ohms	2 x 130 Watts
- @ 2 Ohms	2 x 200 Watts
- @ 1 Ohm	-
- bridged @ 4 Ohms	-
- bridged @ 2 Ohms	-
Max. output power (≤ 10% THD+N)	Up to 460 Watts RMS @ 2 x 2 Ohms
Amplifier technology	Class HD
Inputs	2 x RCA / Cinch 2 x Highlevel speaker input
Input sensitivity	RCA/Cinch: 0.4 - 4 Volts resp. 0.8 - 8 Volts Highlevel: 1.6 - 16 Volts resp. 3.2 - 32 Volts
Input impedance	RCA / Cinch: 47 kOhms Highlevel: 9 - 33 Ohms
Outputs	2 x Speaker output 1 x AISA signal output
Output voltage RCA / Cinch	-
Frequency response	10 Hz - 20,000 Hz
DSP resolution	64 Bit
DSP power	1 x 295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	1 x Audio signal processor
Signal converters	A/D: BurrBrown 32 Bit D/A: AKM 32 Bit
Signal-to-noise ratio (A-weighted)	102 dB @ full power
Distortion (THD @ 50 Hz, 1 W into 4 Ohms)	< 0.005 %
Distortion (THD+N @ 50 Hz, 1 W into 4 Ohms)	< 0.015 %
Damping factor	85
Operating voltage	10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Power rating	DC 12 V ⎓ 45 A max.
Idle current	260 mA
Max. remote output current	-
Operating temperature range	-40 °C to +70 °C
Fuse	1 x 40 A LP-Mini-fuse (APS)
Additional features	Start-Stop capability, Clipping LED, DirectDSP switch, Smart Control Port, 32 Bit CoProcessor, ground lift switch, highlevel input with automatic turn on function
Dimensions (H x W x D)	54 x 231 x 105 mm / 2.13 x 9.09 x 4.13"
