Helix M ONE mono amp
Helix M ONE mono amp

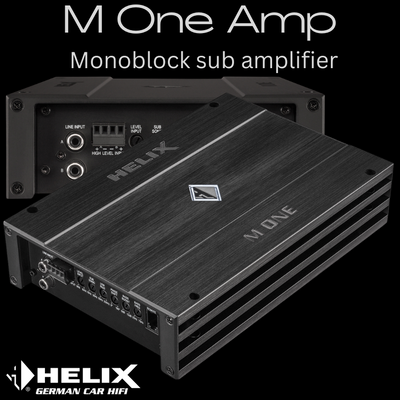

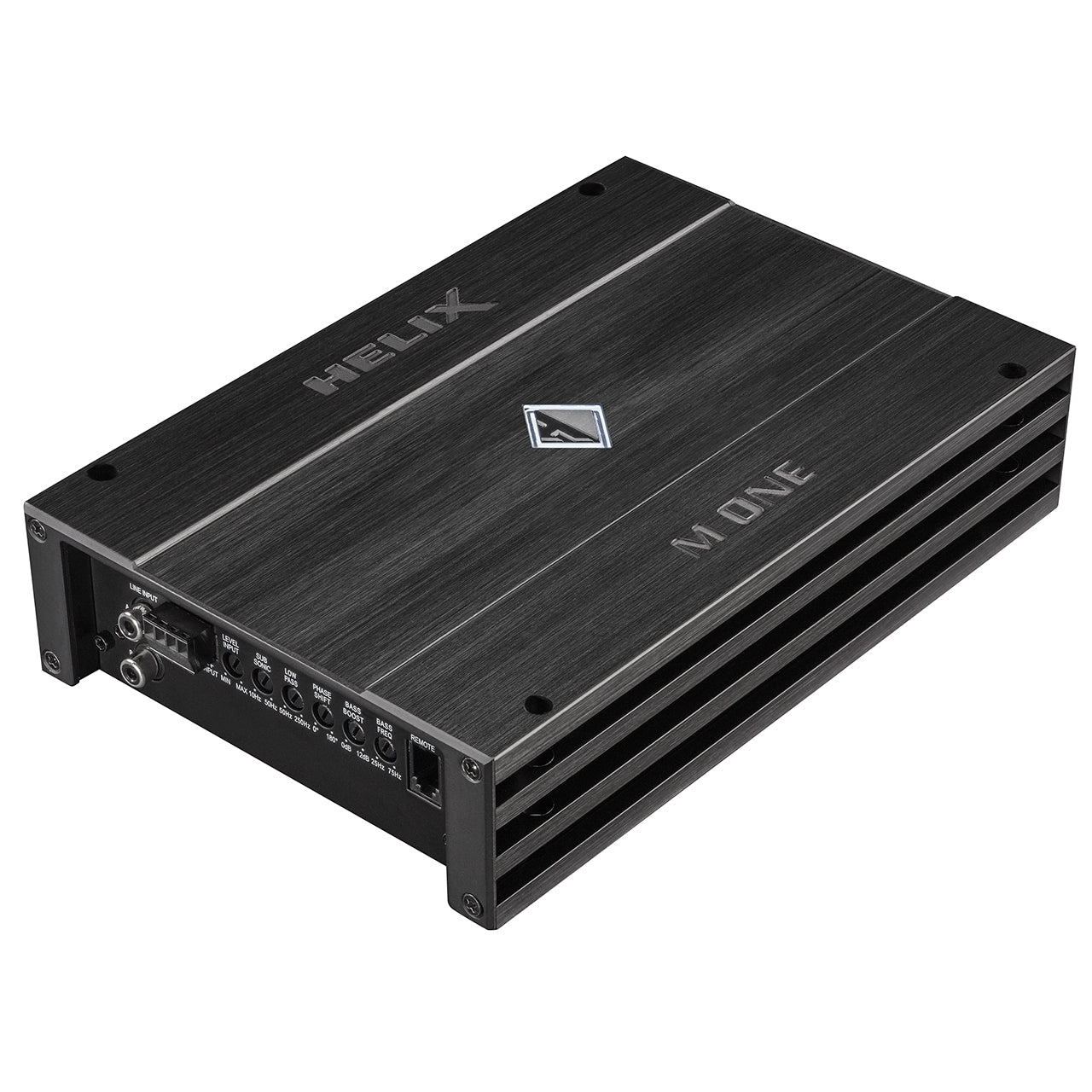

The Helix M ONE is incredibly compact monoblock for subwoofer applications. Smaller than compact! Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
- 1 x 240w @ 4 ohms
- 1 x 410w @ 2 ohms
- 1 x 600w @ 1 ohm
Features
- Small footprint Class D amplifier with high output power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- Extremely stable output stage with high-current power transistors and 1 Ohm stability
- Bass remote control for volume adjustment
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Technical data
Output power RMS ≤ 1% THD+N | |
- @ 4 Ohms | 1 x 240 Watts |
- @ 2 Ohms | 1 x 410 Watts |
- @ 1 Ohm | 1 x 600 Watts |
- bridged @ 4 Ohms | - |
- bridged @ 2 Ohms | - |
Max. output power per channel* | Up to 720 Watts RMS @ 1 Ohm |
Amplifier technology | Class D |

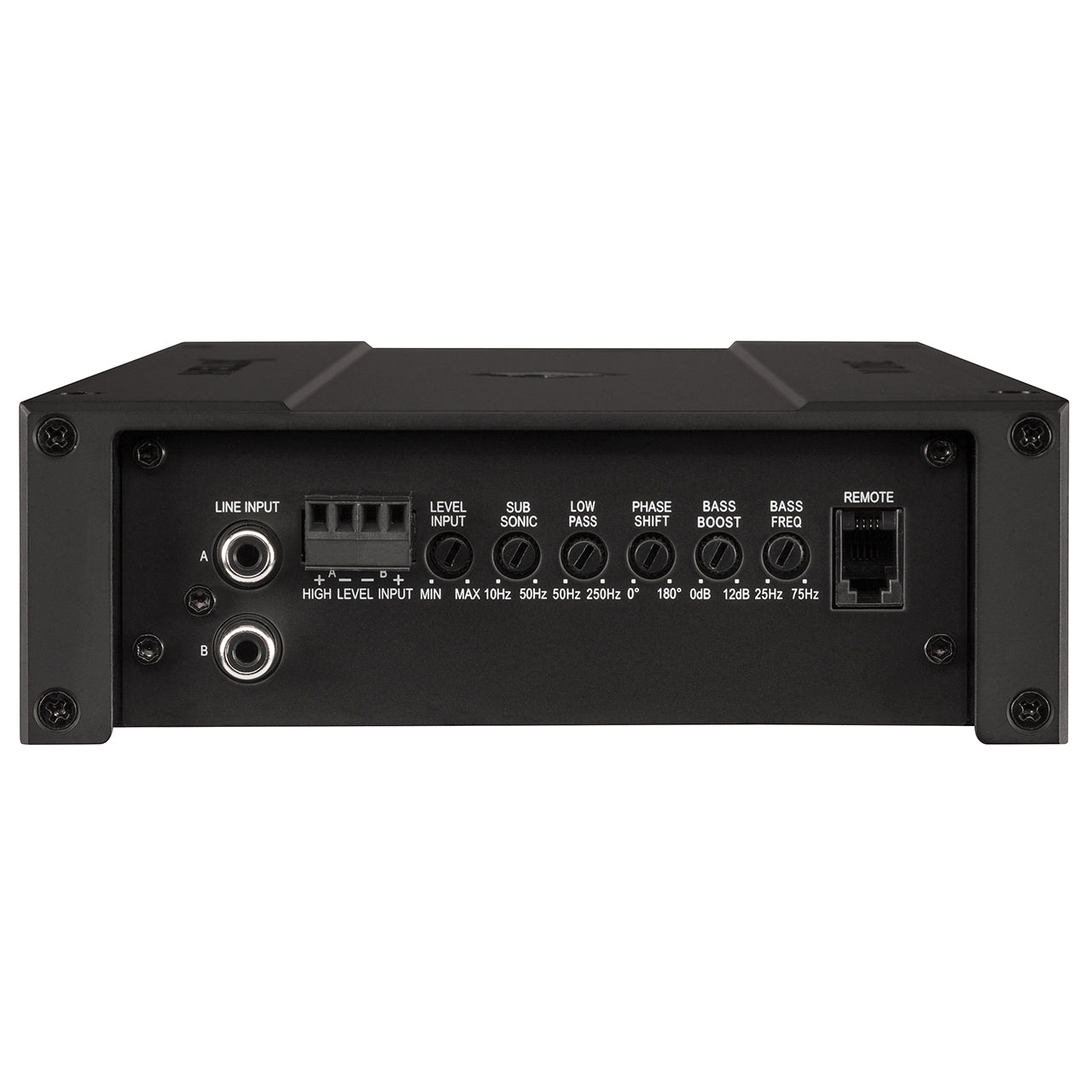

Inputs | 2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input |
Input sensitivity | RCA / Cinch 0.5 - 6 Volts Highlevel 1.1 - 13 Volts |
Input impedance RCA / Cinch | 20 kOhms |
Input impedance highlevel | 13 Ohms |
Outputs | 1 x Speaker output |
Output voltage RCA / Cinch | - |
Signal converter for digital input | - |
Frequency response | 10 Hz - 250 Hz |
Bass boost | 0 - 12 dB / 25 - 75 Hz |
Highpass | - |
Lowpass | 50 Hz - 250 Hz adjustable |
Bandpass | 10 Hz - 250 Hz adjustable |
Subsonic | 10 Hz - 50 Hz adjustable |
Phase | 0 - 180° adjustable |
Slope high- / lowpass | - |
Slope subsonic / lowpass | 12 / 24 dB/Oct. |
Signal-to-noise ratio digital input | - |
Signal-to-noise ratio analog input | 95 dB (A-weighted) |
Distortion (THD) | 0.20 % |
Damping factor | 100 |
Operating voltage | 10.5 - 16 Volts (max. 5 sec. down to 6 Volts) |
Idle current | 650 mA |
Operating temperature range | -40° C to +70° C |

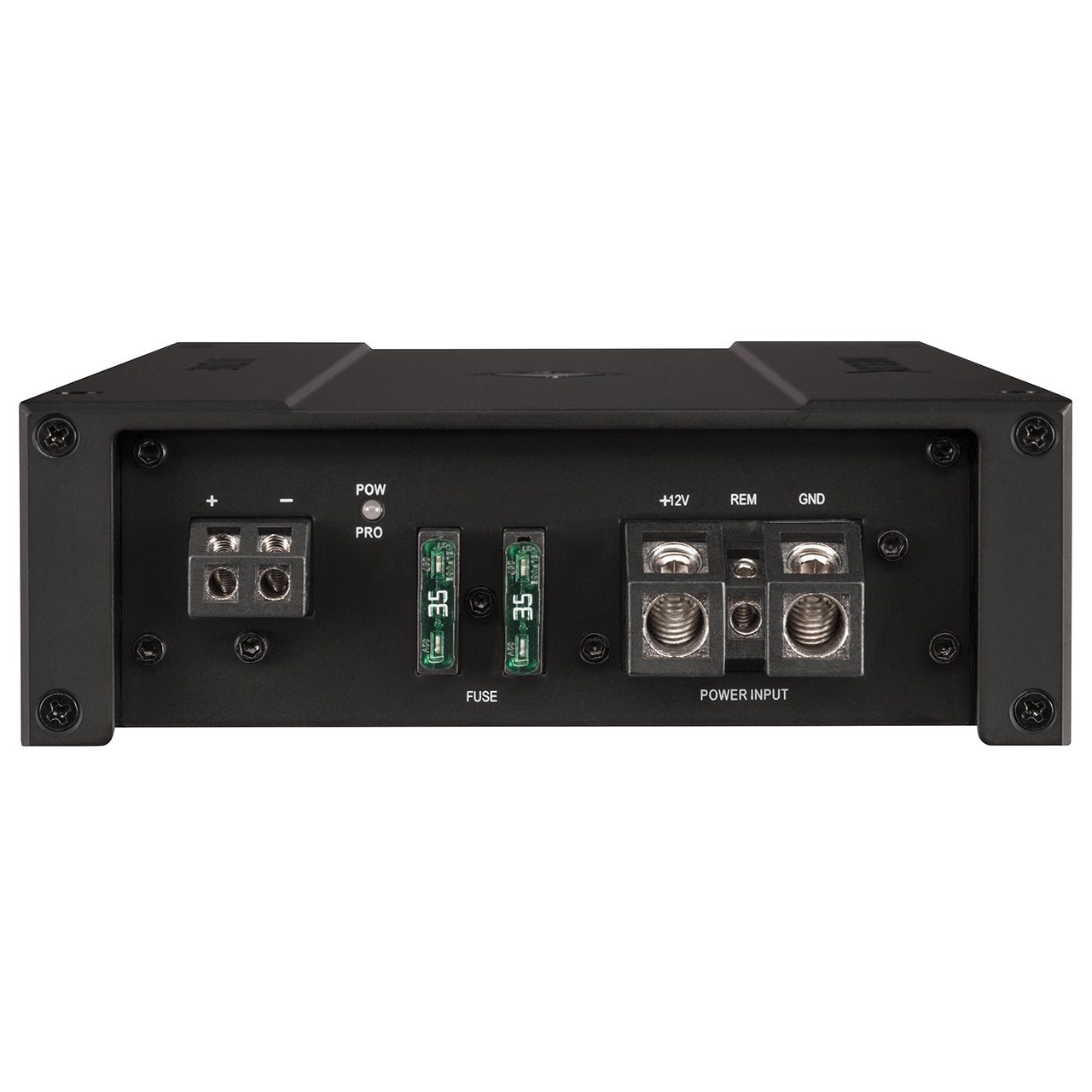

Fuse | 2 x 35 A Maxi-fuse (APX) |
Additional features | Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control |
Dimensions (H x W x D) | 50 x 230 x 154 mm / 2.00 x 9.06 x 6.06” |
* In typical applications as subwoofer amplifier
