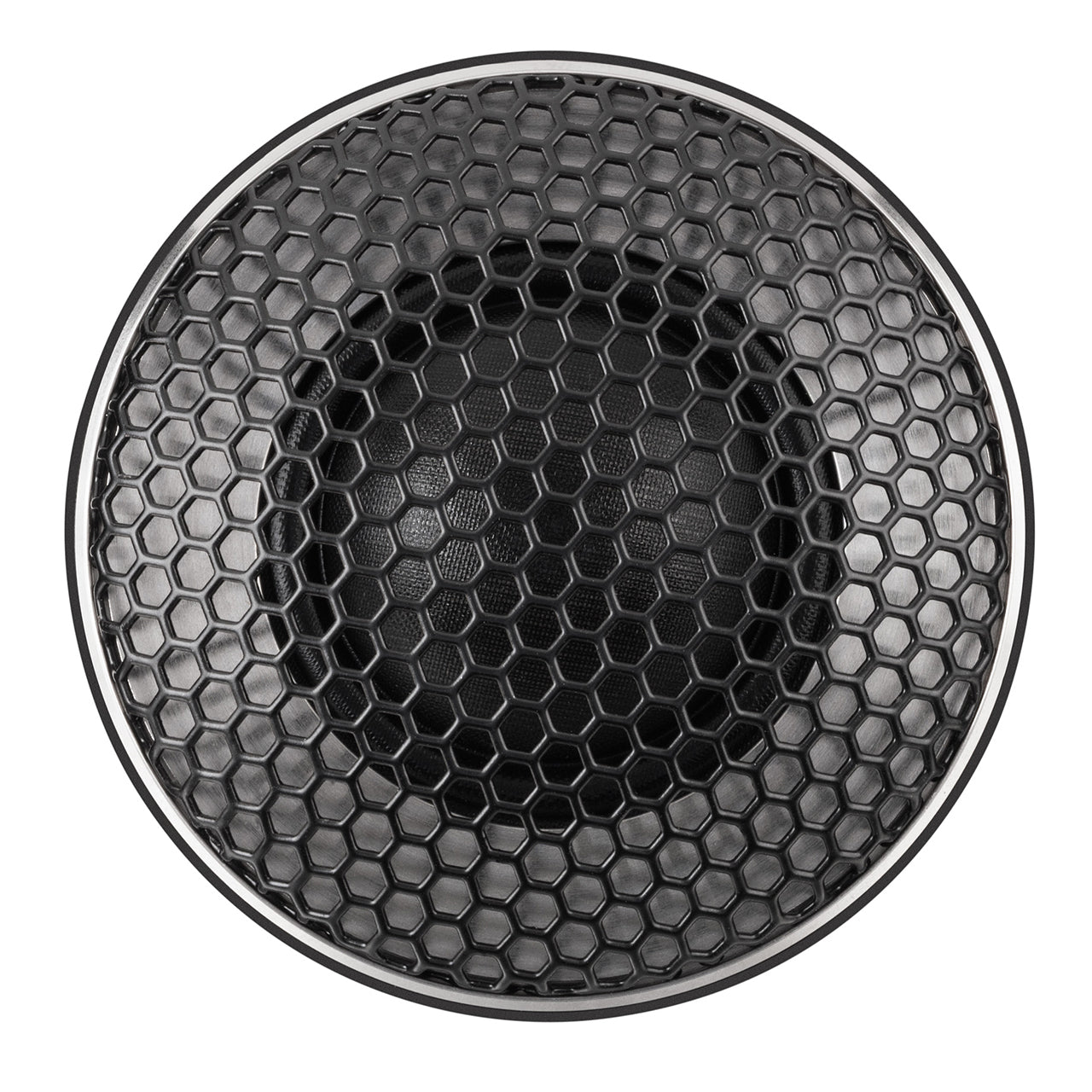

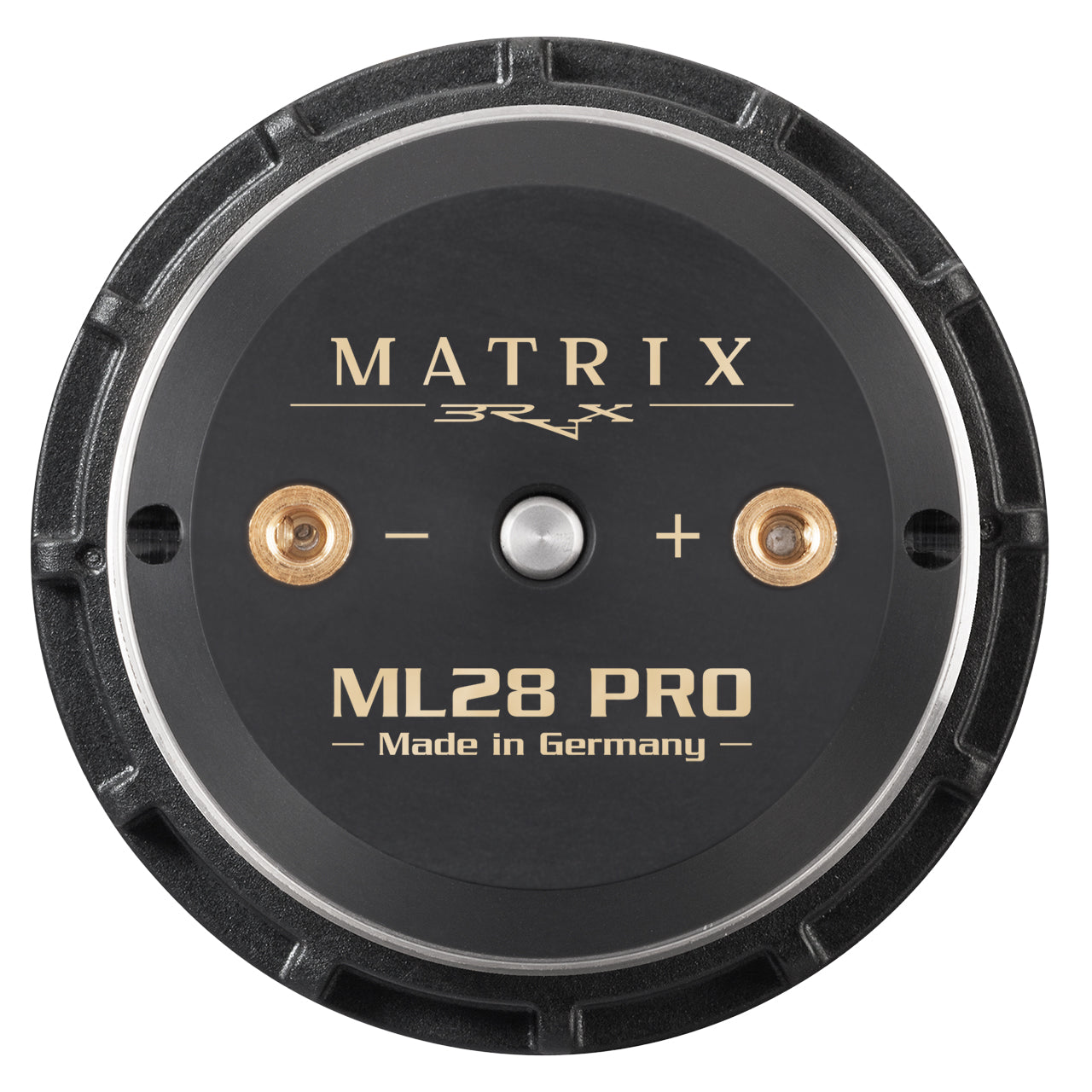

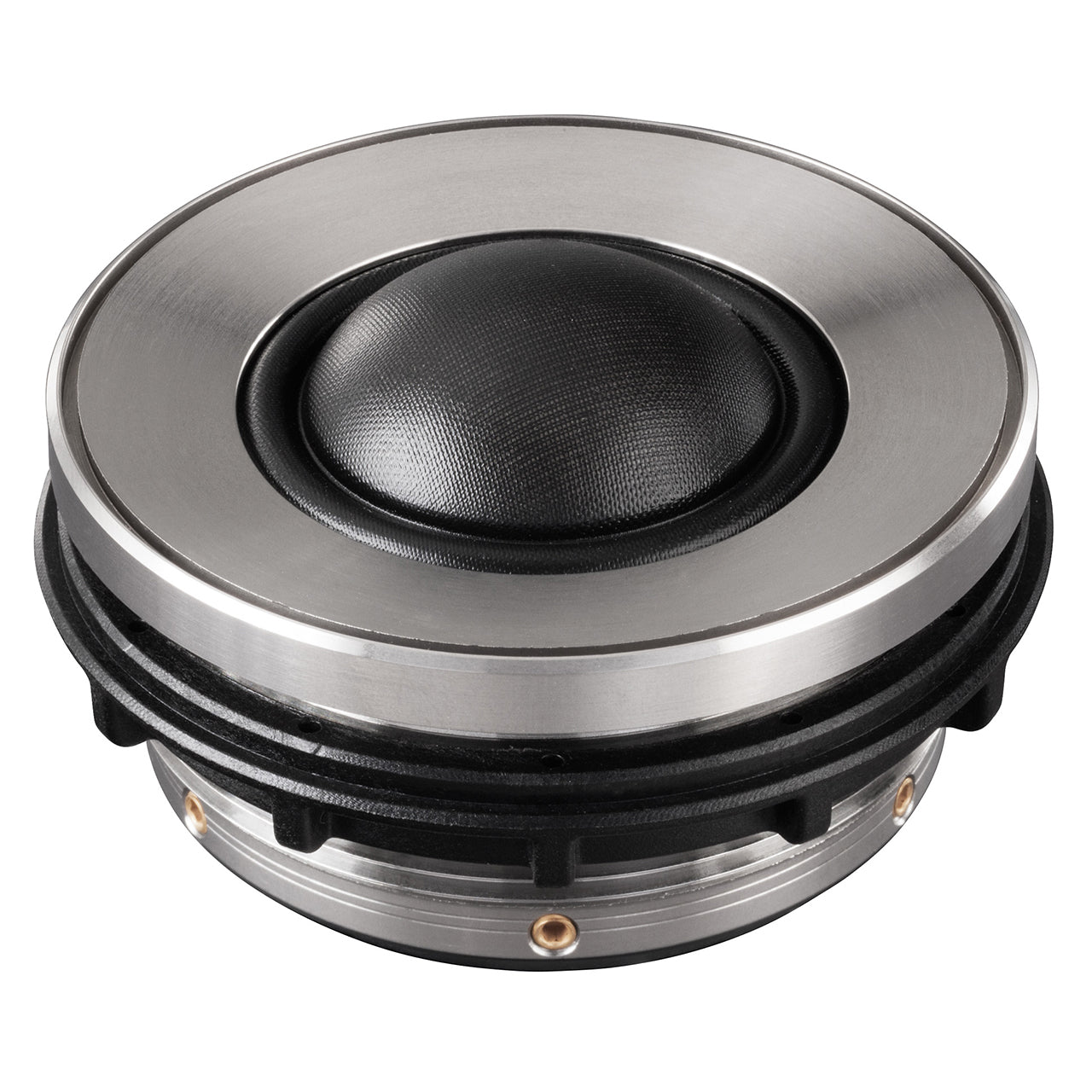

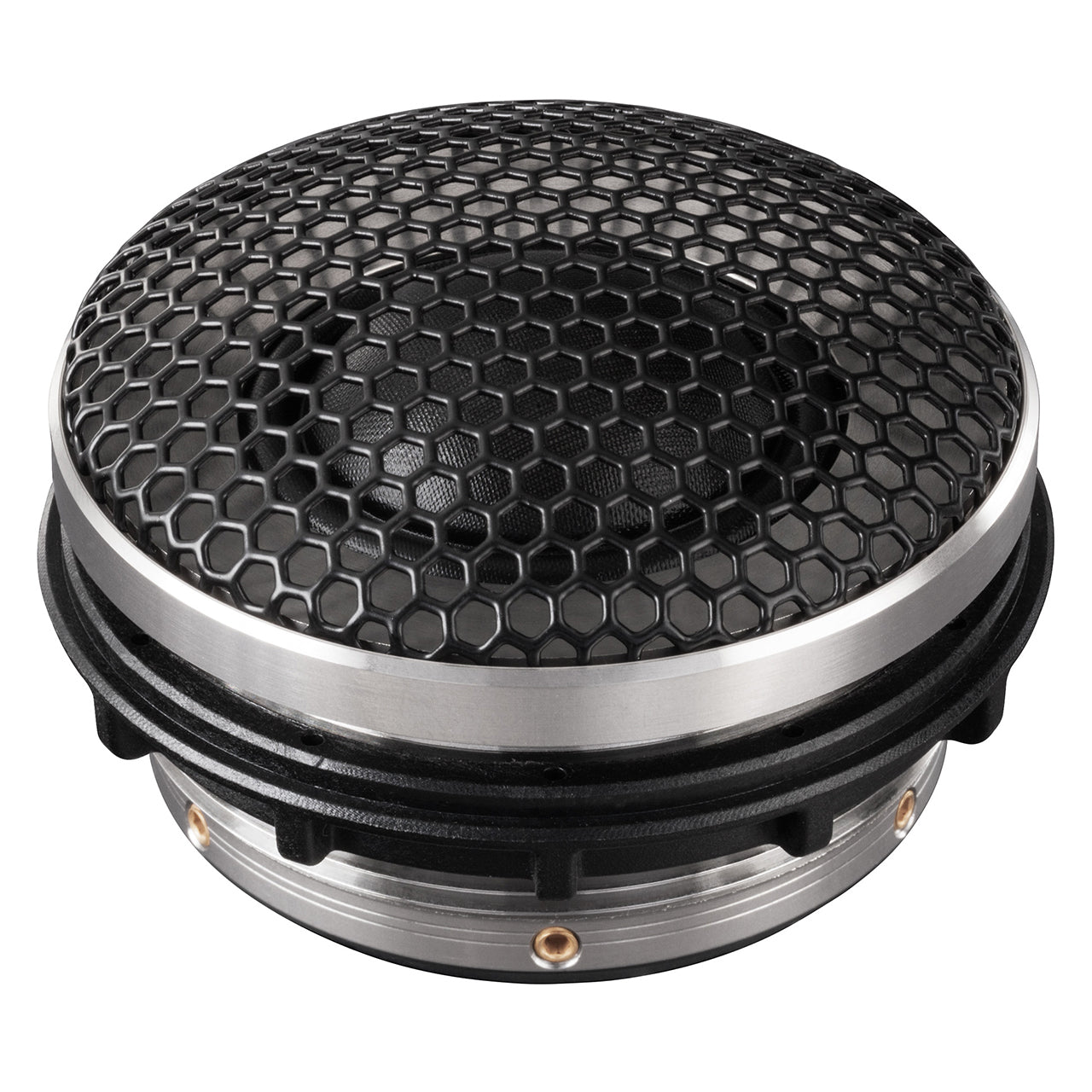

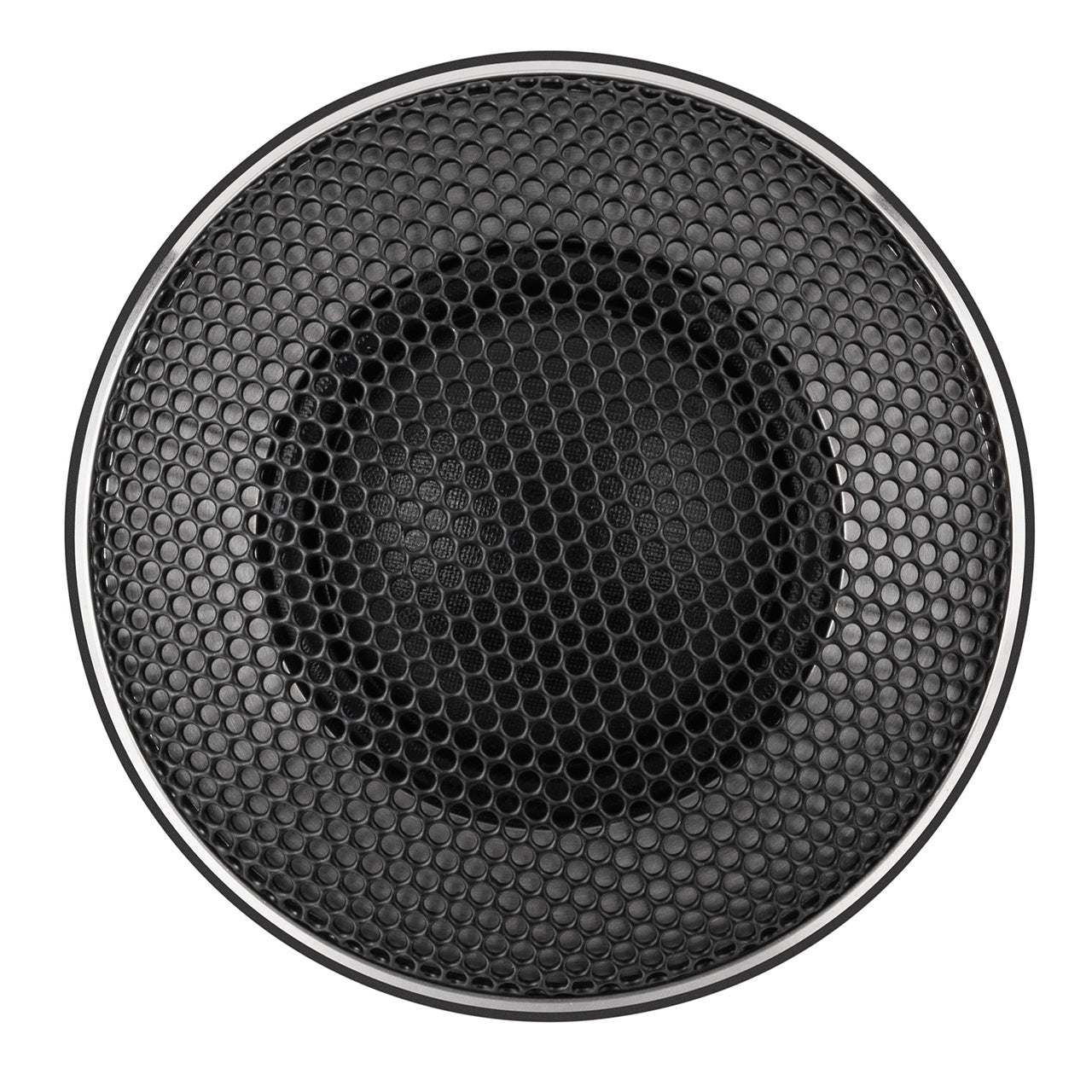

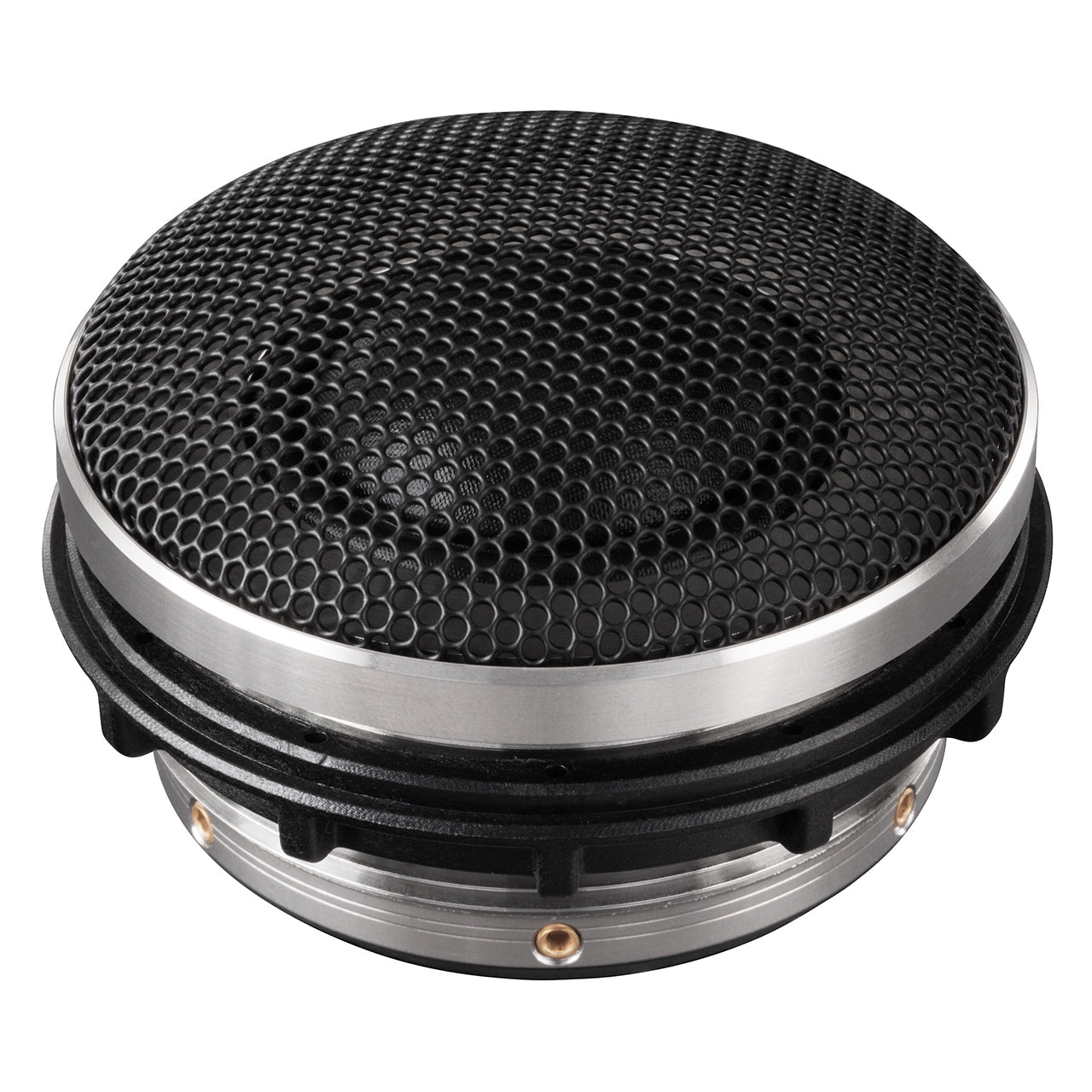

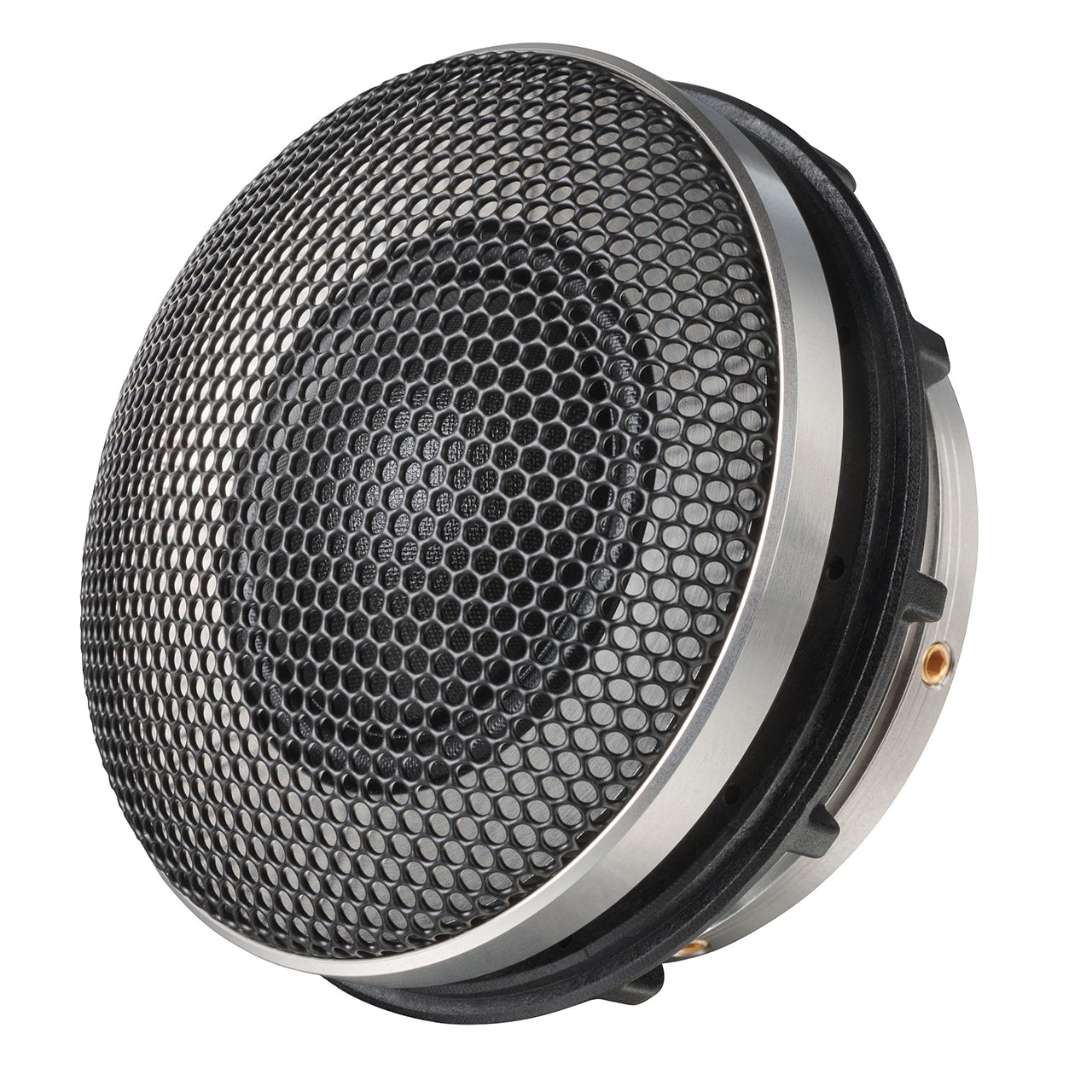

Brax speakers are reference-grade components for installations where no compromise is acceptable.
Designed and manufactured in Germany by the engineers behind Helix and Match audio, these represent the absolute pinnacle of automotive speaker engineering. This isn't a casual upgrade from factory speakers – Brax components demand professional installation, proper amplification, and complete system integration.
In order to meet the high-quality requirements of Brax and to reach perfect tonal interaction, each speaker set is hand-selected and paired according to its acoustic parameters. Only after selection, every speaker set receives its unique serial number, which is recorded in a service database.
The exclusive wooden box packaging completes this high-end product and emphasises once again the philosophy of BRAX.
| Power RMS / max. | P | 120 / 170 Watts (highpass > 3,000 Hz at 12 dB/Oct.) |
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.4 Ω |
| Frequency response | 1,800 - 25,000 Hz | |
| Resonance frequency | Fs | 760 Hz |
| Sensitivity | SPL |
93 dB @ 2.83V / 1m |
| Voice coil diameter | ø | 28 mm / 1.10" |
| Cone area | Sd | 6.2 cm² |
| Moving mass | Mms | 0.32 g |
| Cone material | Silk dome with a visco-elastic Acronal coating on both sides | |
| Outer diameter | ø | 60 mm / 2.4" |
| Installation diameter | ø | 52 mm / 2.1" |
| Installation depth | 25 mm / 1.0" | |
| Recommended crossover frequencies for the highpass | ||
| Slope |
Minimum crossover frequency | |
| 6 dB/Octave | 3,500 Hz | |
| 12 dB/Octave | > 2,500 Hz | |
| 24 dB/Octave | > 1,800 Hz | |
