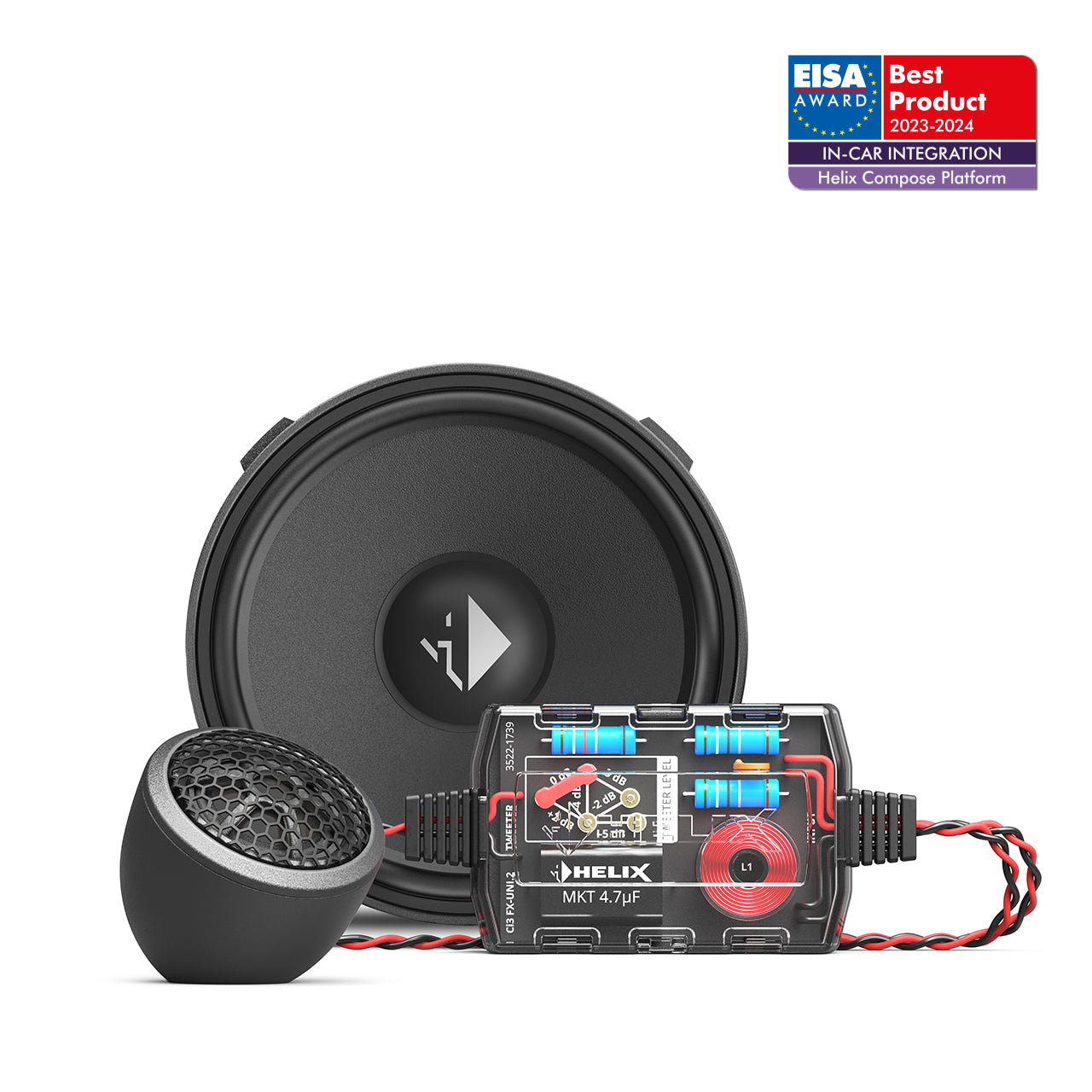

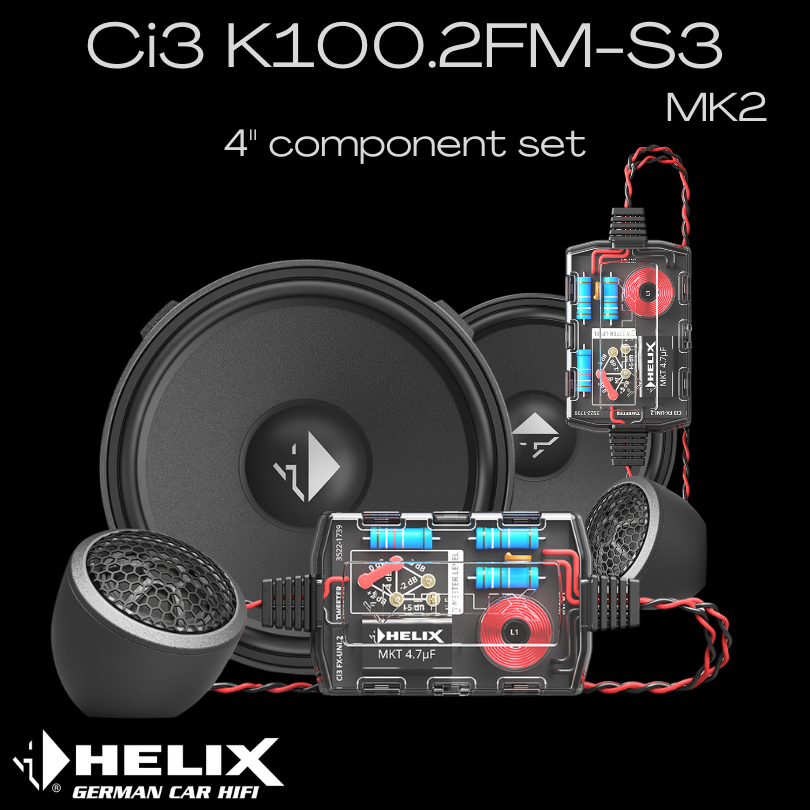

Ci3 K100.2FM-S3 Mk2

4" component speaker + tweeter set

2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options
High efficiency and 3-ohm technology for maximised power output of the amplifier
Smart, automotive-grade connectors for fail-safe and secure installation – COMPOSE Connect & FlexConnect
Tweeter

0.75” / 20 mm performance tweeter with black aluminium dome for accurate, pure and detailed treble response
High-quality aluminium dome with a perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction
Refined highly efficient neodymium magnet for high magnetic flux linearity and optimised performance
Compact design and various mounting options for numerous installation demands

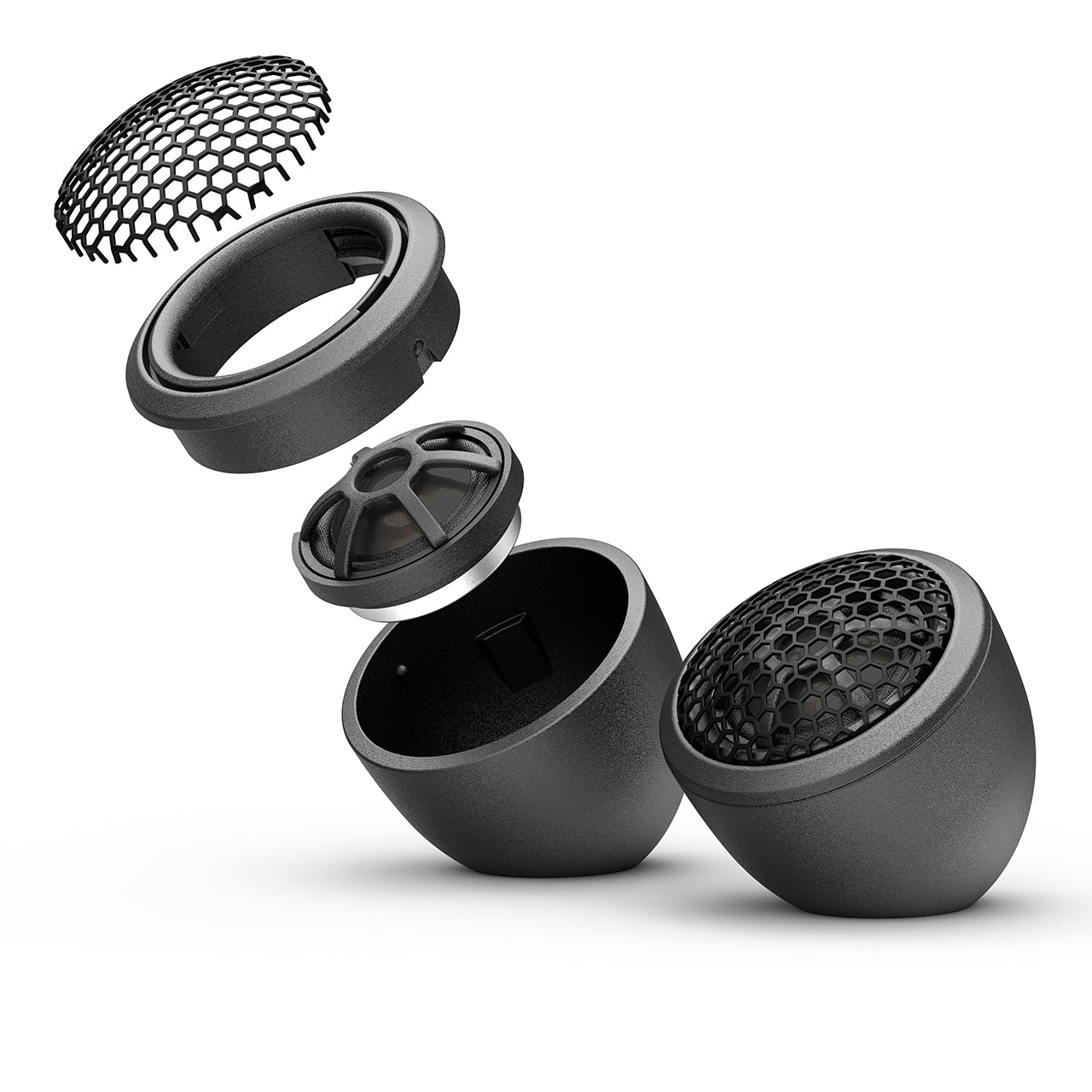

Mounting pods for flush mount and angle mount included in delivery

4" / 100 mm midrange with a unique Cenosphere-coated paper cone for precise and detailed sound reproduction
High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimised ringing
Shallow neodymium magnet system for low installation depth and high efficiency
Polyurethane dustcap for optimised frequency response in the upper midrange area

Separate, high-grade crossover with compact dimensions for easy integration
6-stage tweeter level adjustment with integrated tweeter protection for optimised treble adaptation to mounting position
Extensively fine-tuned – with a 12 dB slope for the tweeter

Power handling RMS / Max.	P	80 / 120 Watts
Frequency response		120 Hz - 25,000 Hz
Impedance	Z	3 Ω
Sensitivity	SPL	91 dB @ 2.83V / 1m 87 dB @ 1W / 1m
Outer diameter	ø	Tweeter: 32.0 mm / 1.26” Midrange: 98.0 mm / 3.86”
Installation diameter	ø	Tweeter: 32.0 mm / 1.26” Midrange: 89.0 mm / 3.50”
Installation depth		Tweeter: 9.8 mm / 0.39” Midrange: 30.0 mm / 1.18”
Dimensions crossover		103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98”

Midrange
Impedance	Z	3 Ω
DC resistance	Re	3.0 Ω
Resonance frequency	Fs	146 Hz
Mechanical Q factor	Qms	4.49
Electrical Q factor	Qes	1.02
Total Q factor	Qts	0.83
Compliance	Cms	280 μm/N
Equivalent air volume	Vas	1.1 L
Force factor	Bl*	3.4 Tm
Cone area	Sd	53 cm²
Moving mass	Mms	4.3 g
Mechanical resistance	Rms	0.87 kg/s
Voice coil diameter	ø	25 mm
Voice coil winding height		4.8 mm
Max. linear excursion	Xmax	+/- 2.0 mm

Tweeter
Impedance	Z	4 Ω
Resonance frequency	Fs	1800 Hz
Voice coil diameter	ø	20 mm

Features
Tweeter		Ultra compact, aluminium dome, neodymium magnet and FlexMount20
Midrange		Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100
Crossover		Tweeter: 12 dB highpass, protection and level adjustment

$649.00

Includes GST
