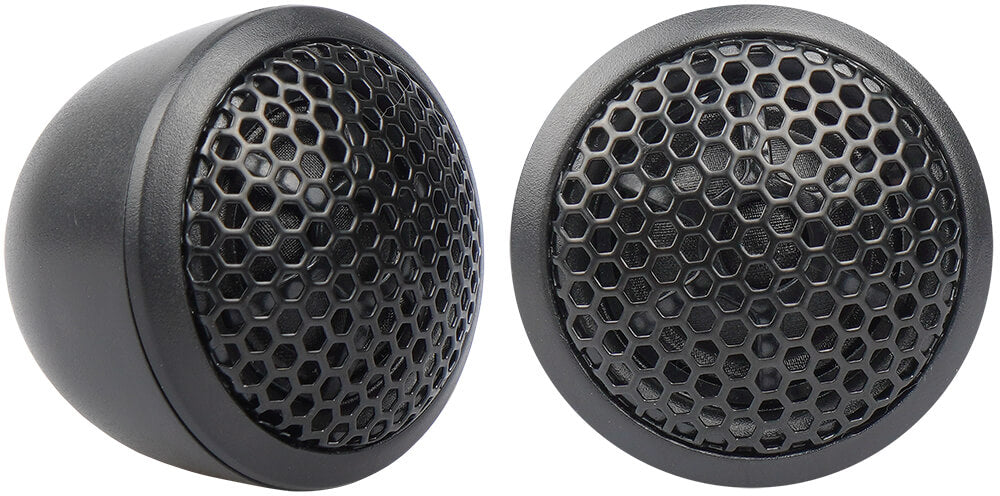

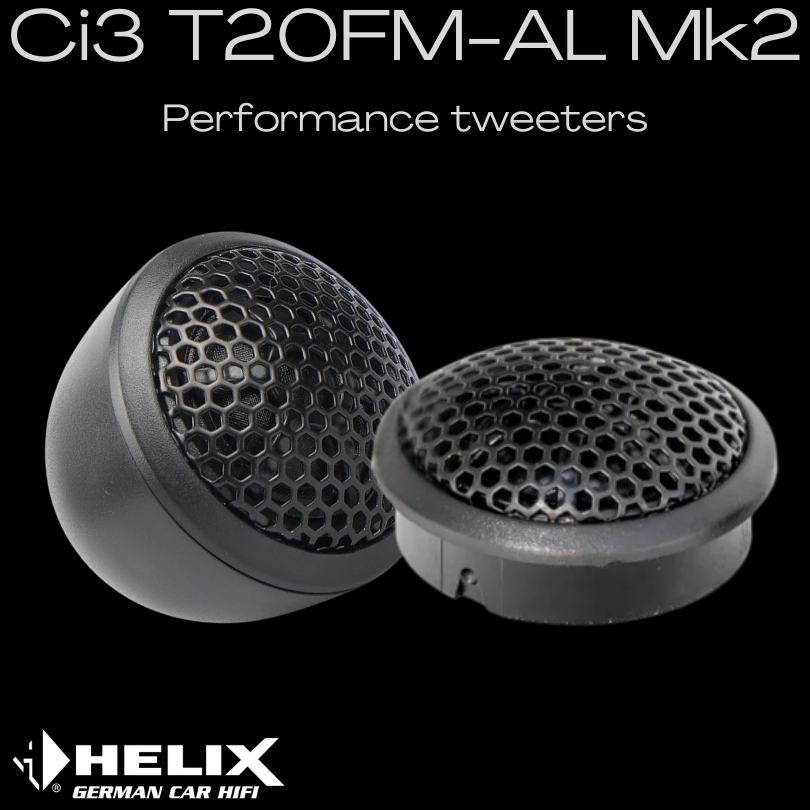

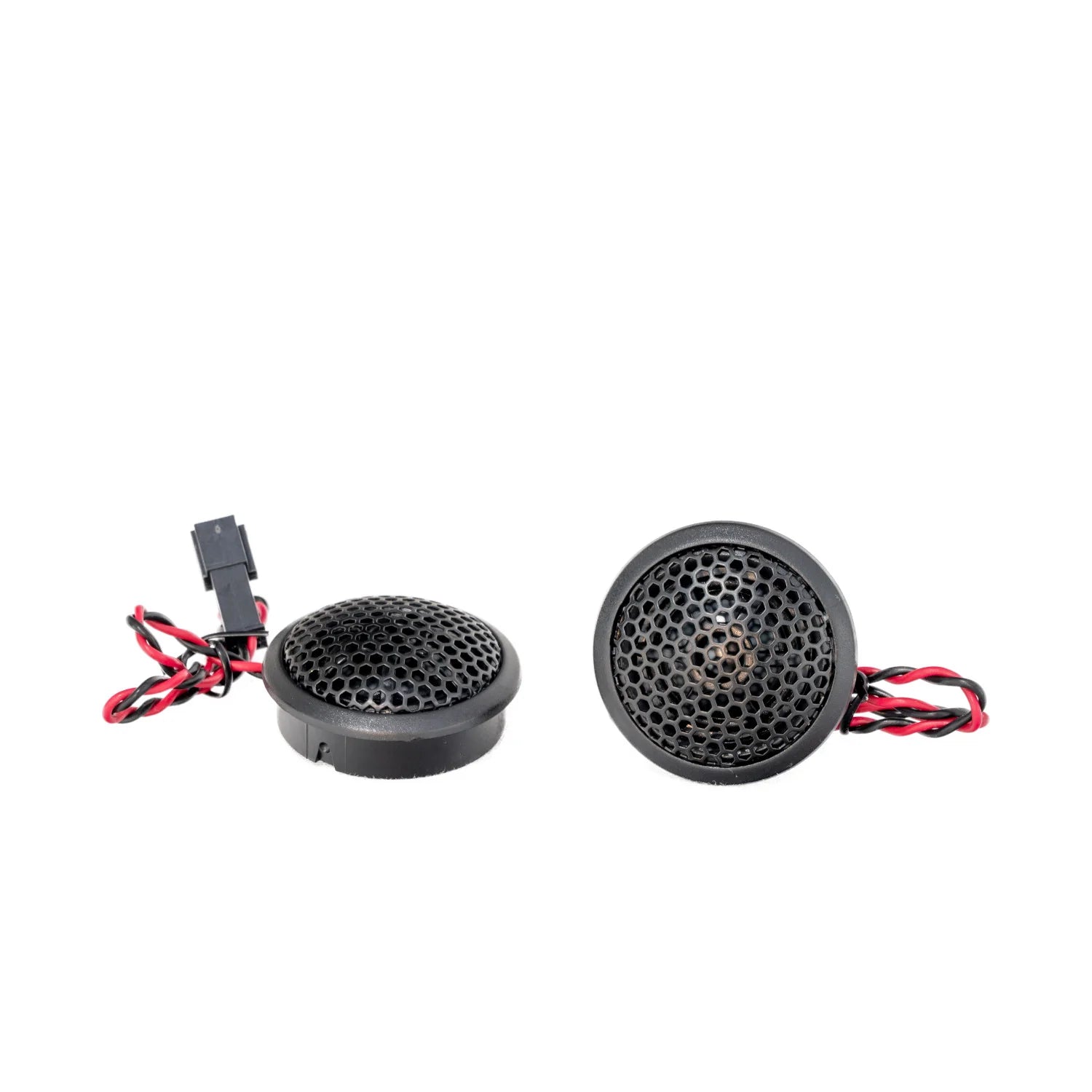

Ci3 T20FM-AL MK2

Performance aluminium dome tweeter

0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response
High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction
Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance
Compact design and various mounting options for numerous installation demands

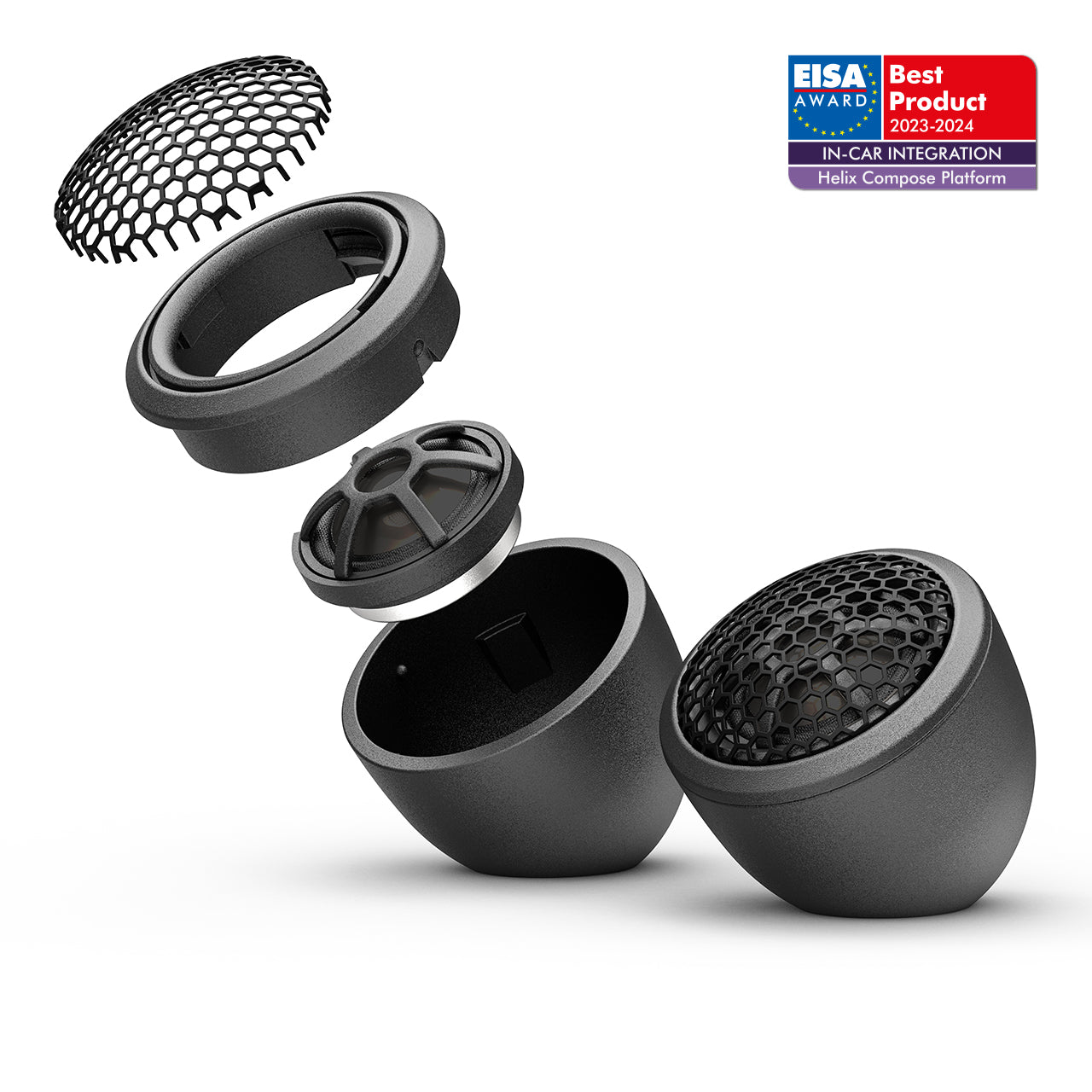

Mounting pods for flush mount and angle mount included in delivery

Impedance	Z	4 Ω
DC resistance	Re	3.2 Ω
Frequency response		2,000 Hz - 25,000 Hz
Resonance frequency	Fs	1800 Hz
Sensitivity	SPL	91 dB @ 2.83V / 1m 88 dB @ 1W / 1m
Voice coil diameter	Ø	20 mm
Cone material		Aluminum
Outer diameter		32 mm / 1.26"
Installation diameter		28 mm / 1.10"
Installation depth		9.8 mm / 0.39"

Recommended crossover frequencies for the highpass
Slope		Minimum crossover frequency
6 dB/Octave		> 5,000 Hz
12 dB/Octave		> 3,500 Hz
24 dB/Octave		> 3,000 Hz

$249.00

Includes GST
