Helix IK E8.1-SVC2

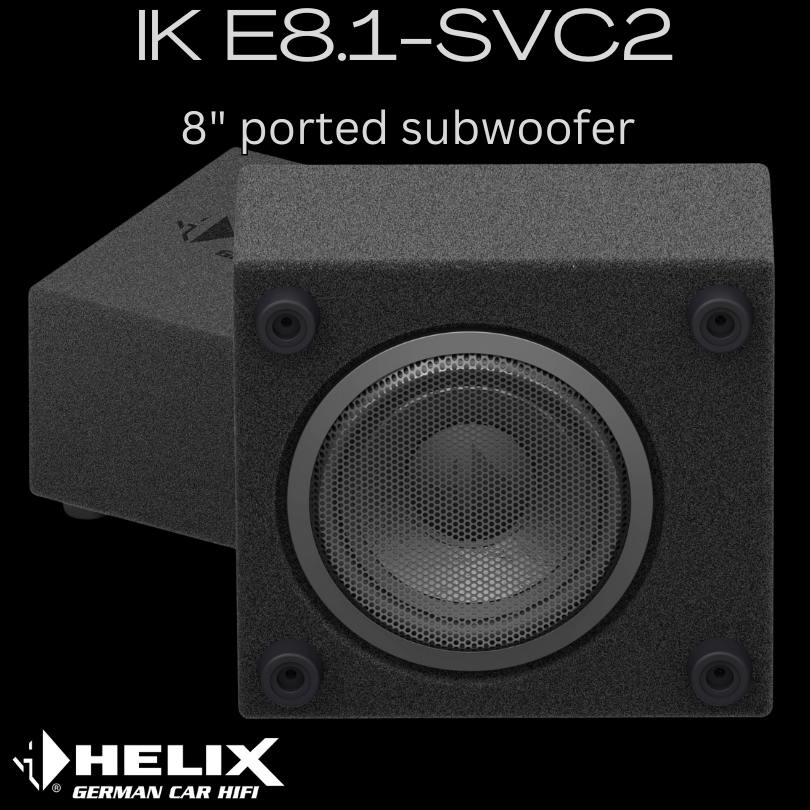

8" ported sub

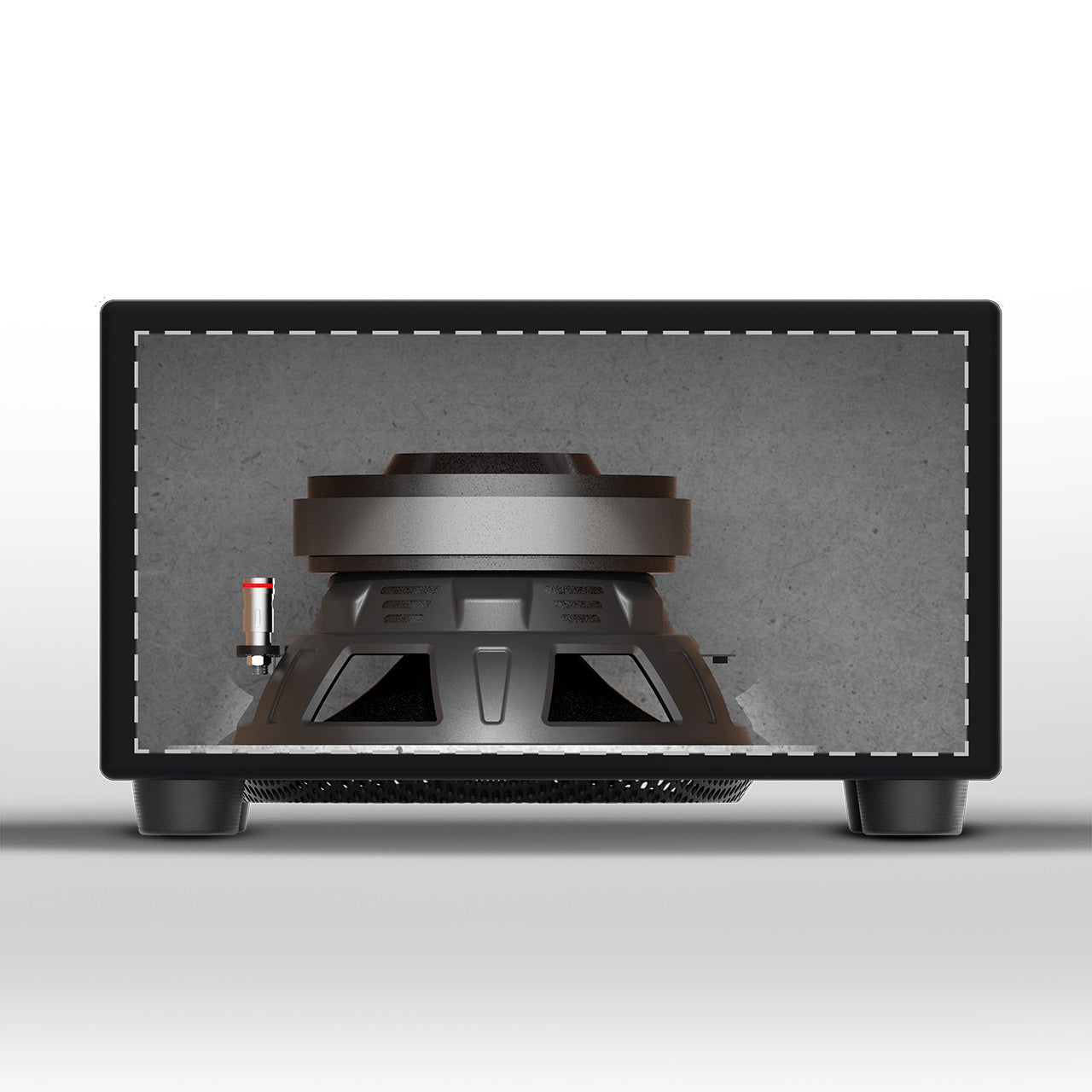

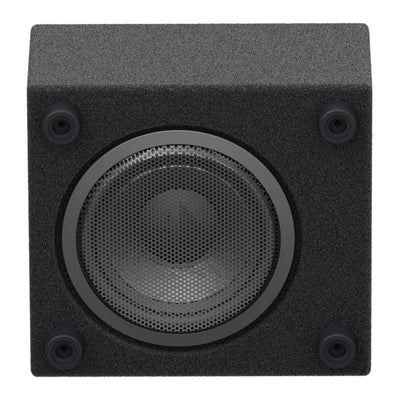

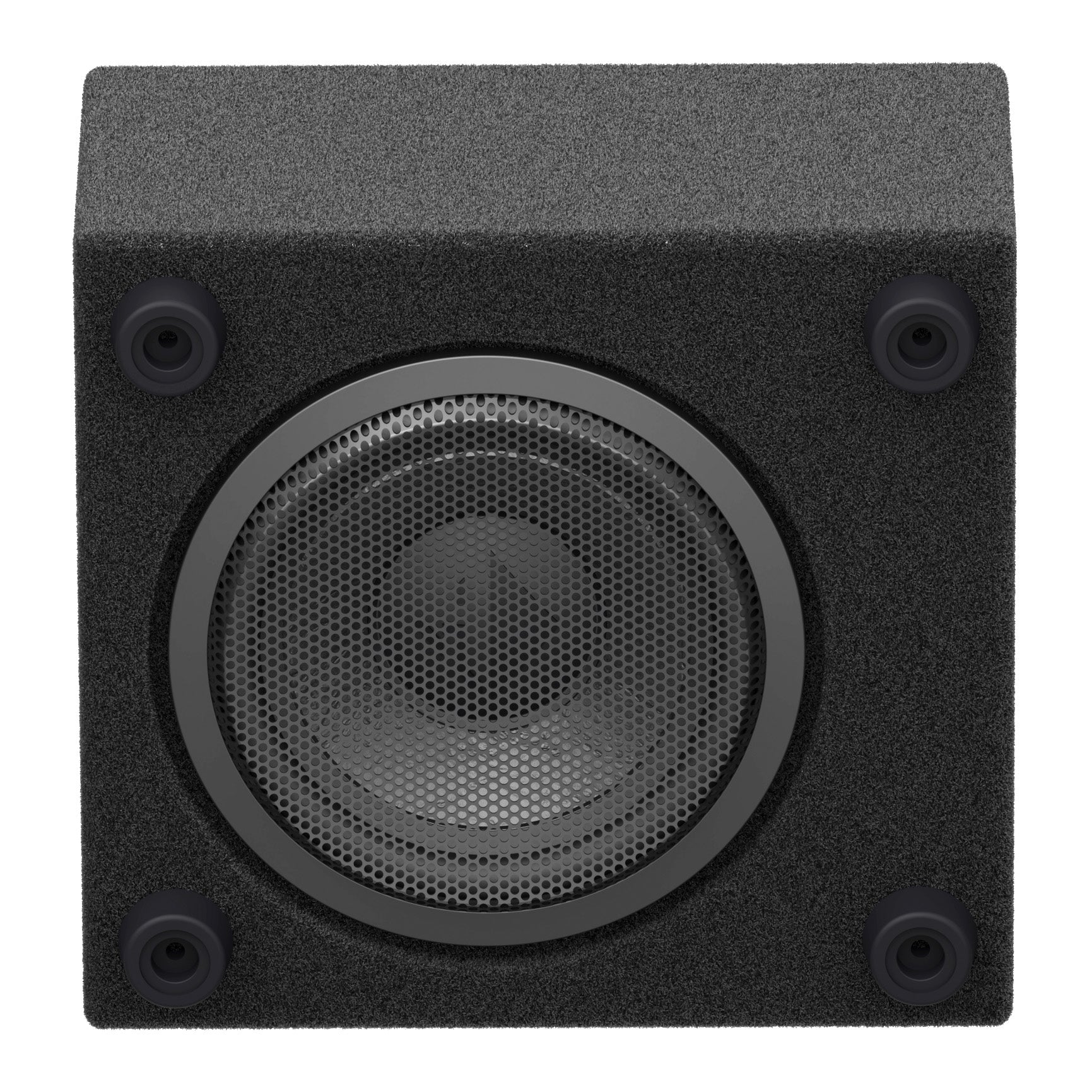

Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier

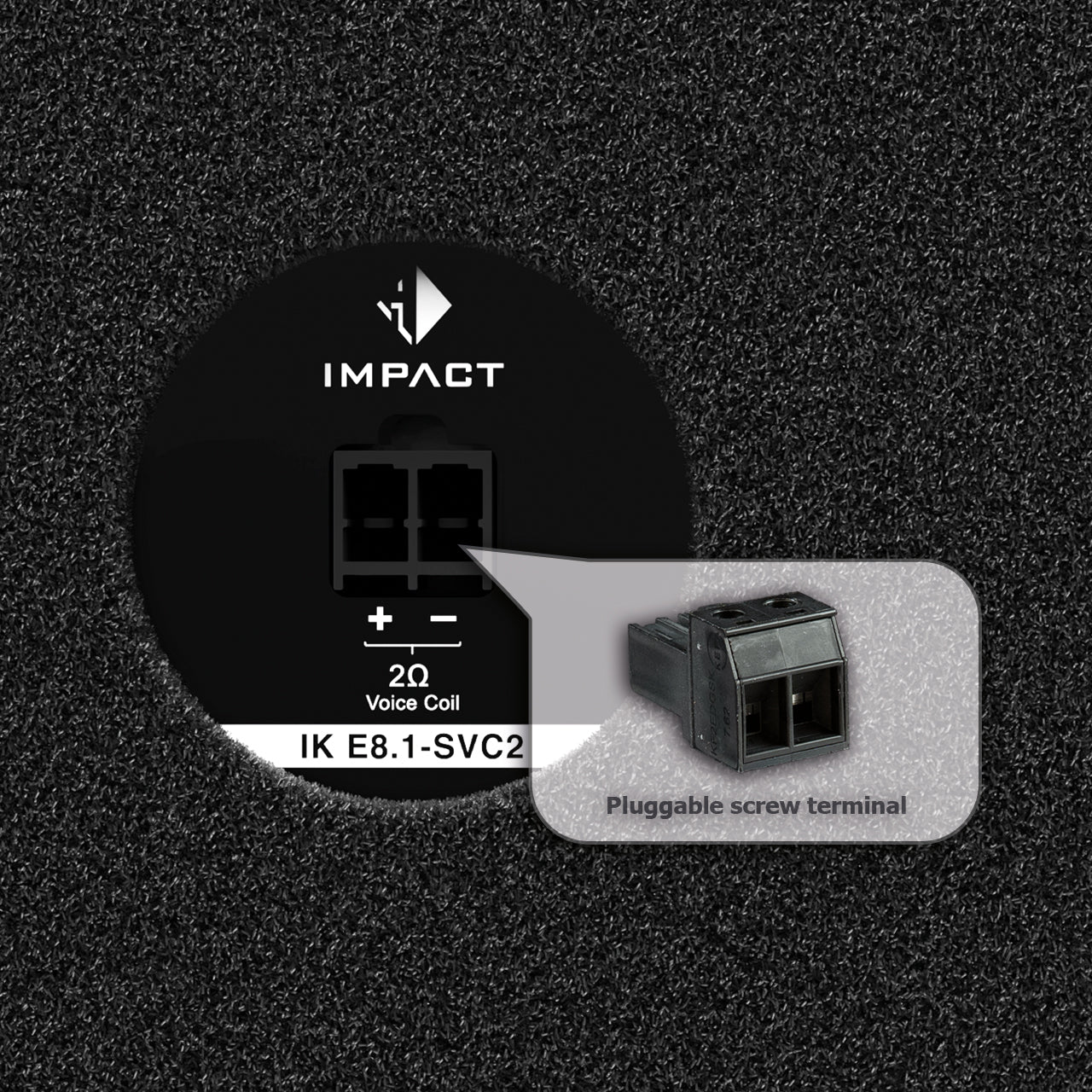

Pluggable screw terminal for quick and safe installation and removal
Feet with Velcro tape for a secure stand in the vehicle

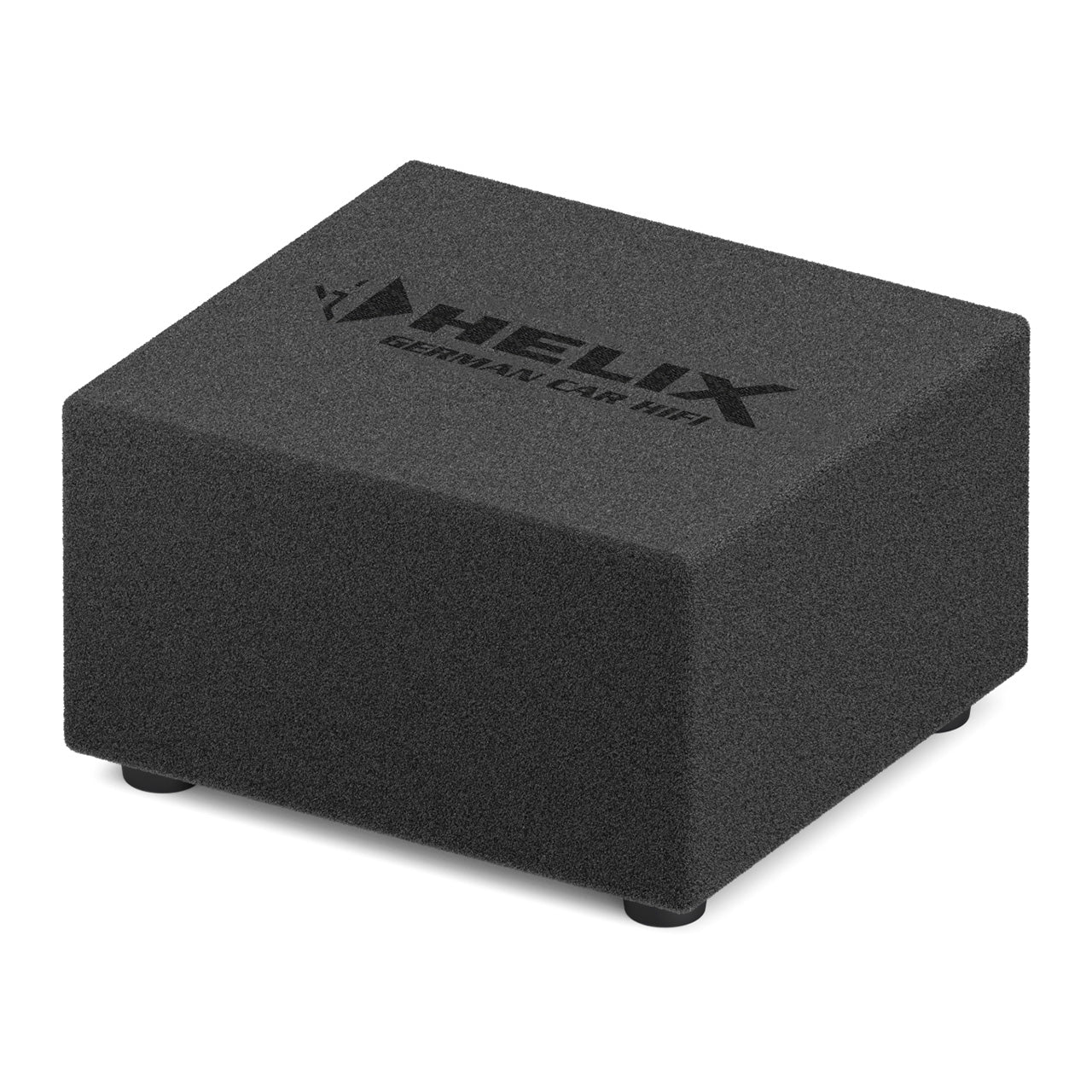

Sturdy carpet surface with embroidered HELIX logo

Power handling RMS	P	300 Watts
Recommended amplifier power	RMS	150 - 300 Watts
Impedance	z	1 x 2 Ω
Max. linear excursion	Xmax	+/- 8.0 mm
Port tuning frequency	Fb	43 Hz
Sensitivity	SPL	91 dB @ 2.83V / 1m 85 dB @ 1W / 1m
Dimensions (H x W x D)		184 x 310 x 285 mm 7.2 x 12.2 x 11.2"
Integrated subwoofer chassis		HELIX IK W8-SVC2
Recommended DSP settings		"Self-define" highpass 44 Hz / Q = 1.6; EQ filter: 115 Hz / Q = 0.9 / -3.5 dB

$799.00

Tax included. Shipping calculated at checkout.
