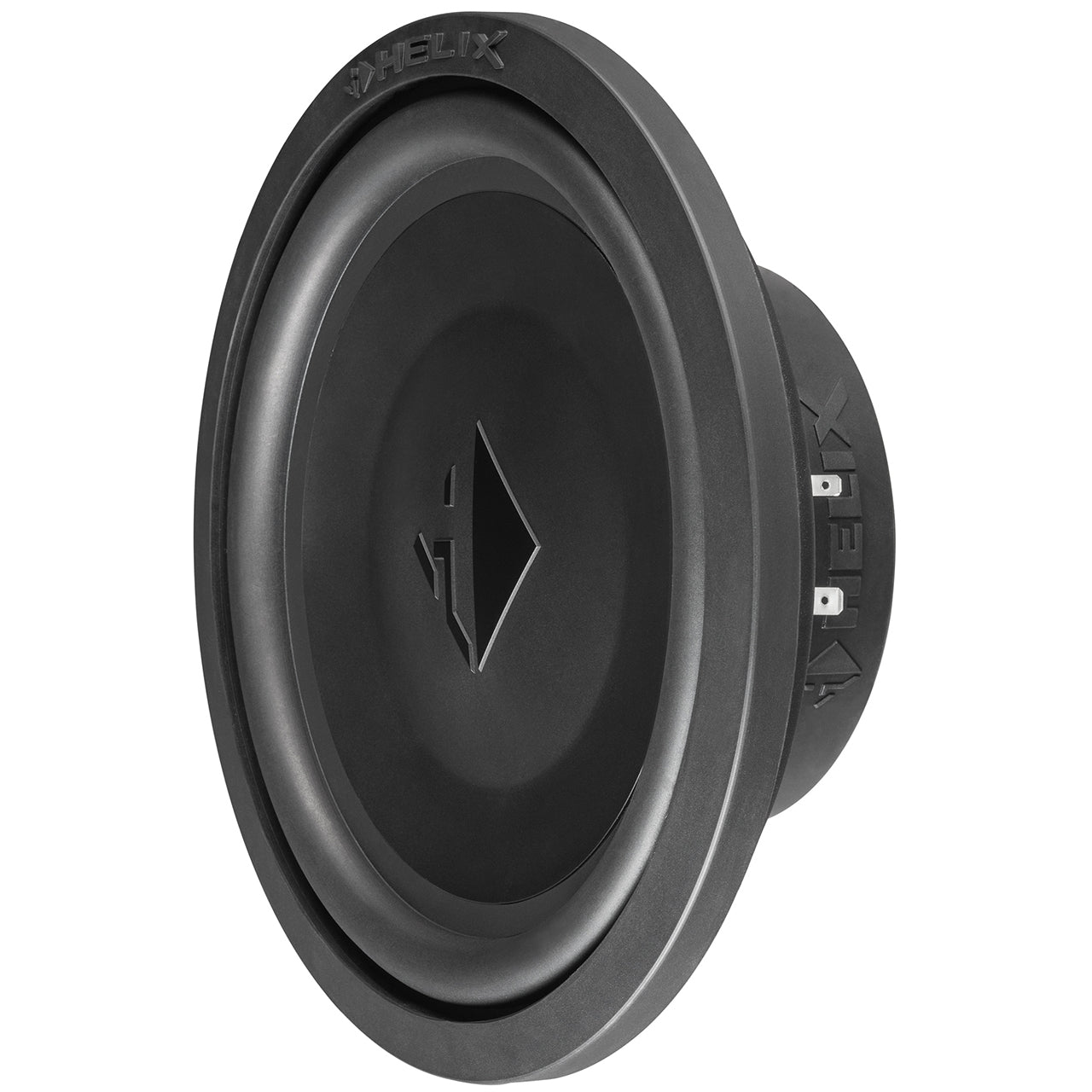

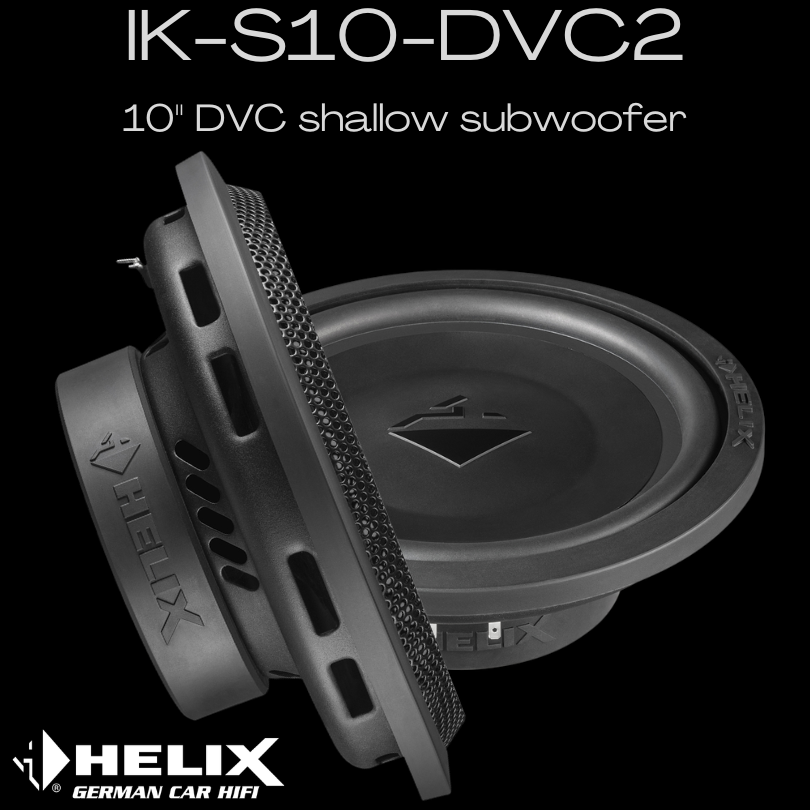

IK-S10-DVC2

Shallow 10" dual voice coil subwoofer

Features

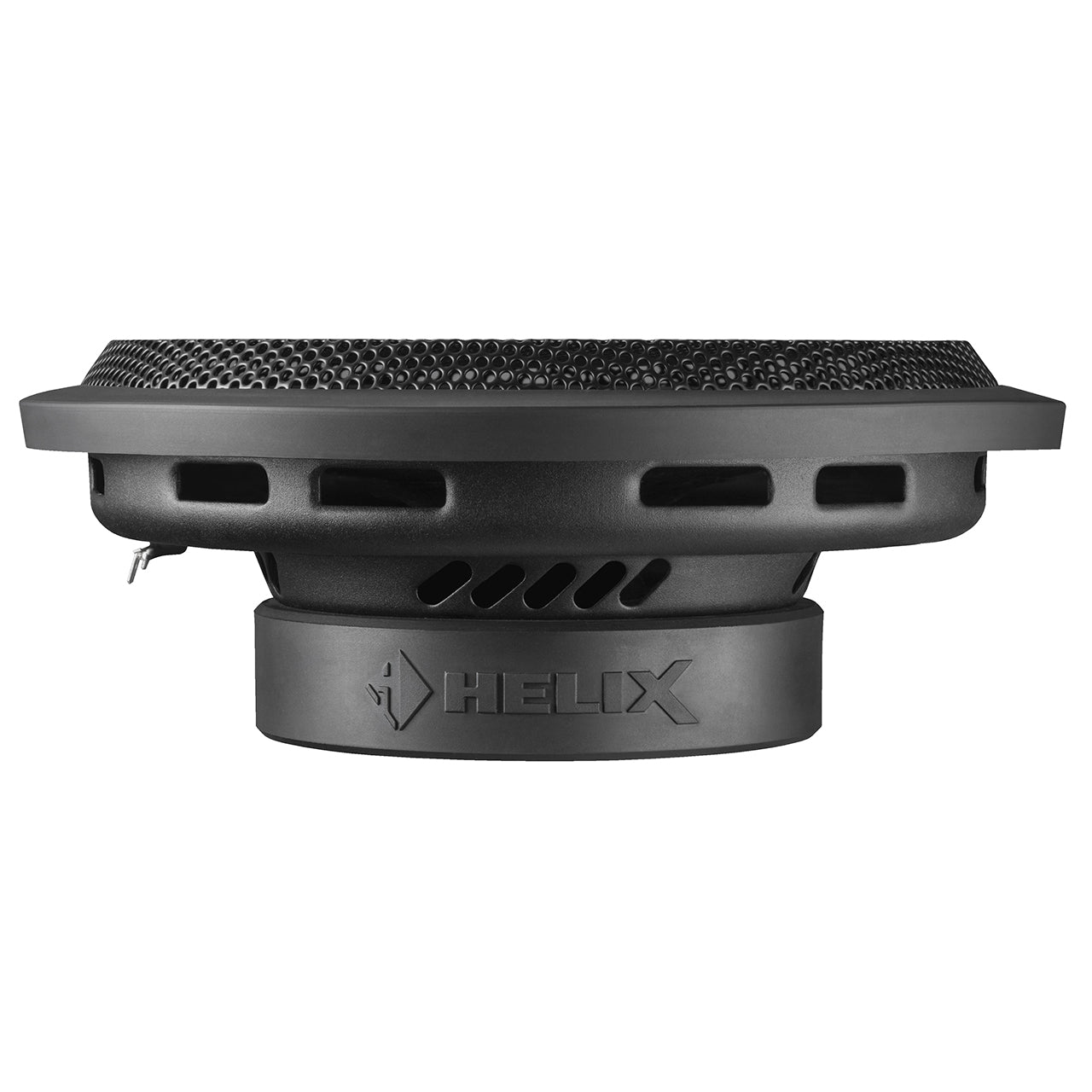

Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
2 x 2 Ohms dual voice coil for flexible system configuration
Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations

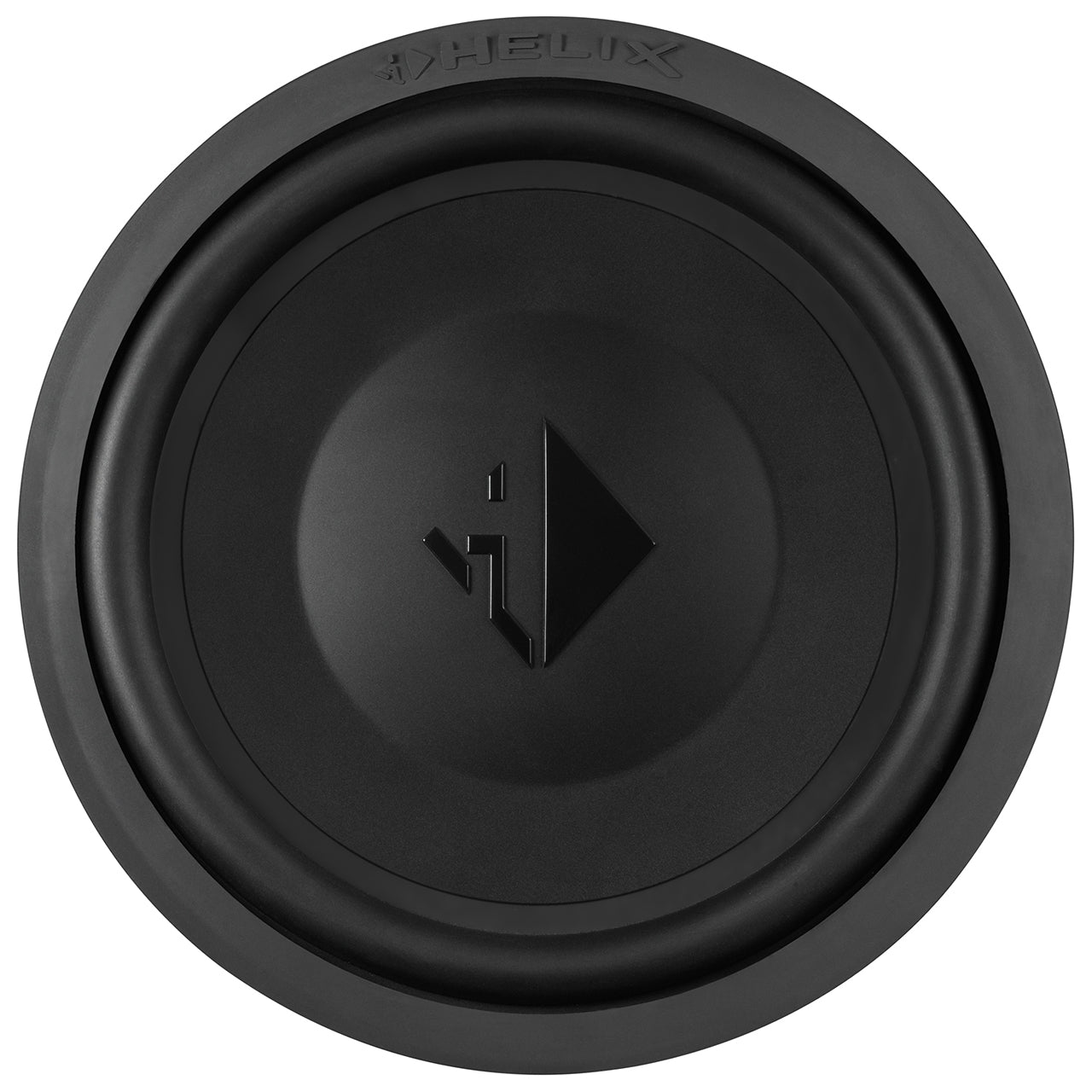

Extremely stiff sandwich paper cone
Long-excursion rubber surround for highest mechanical rating
Rugged magnet cover with HELIX lettering for perfect magnet protection

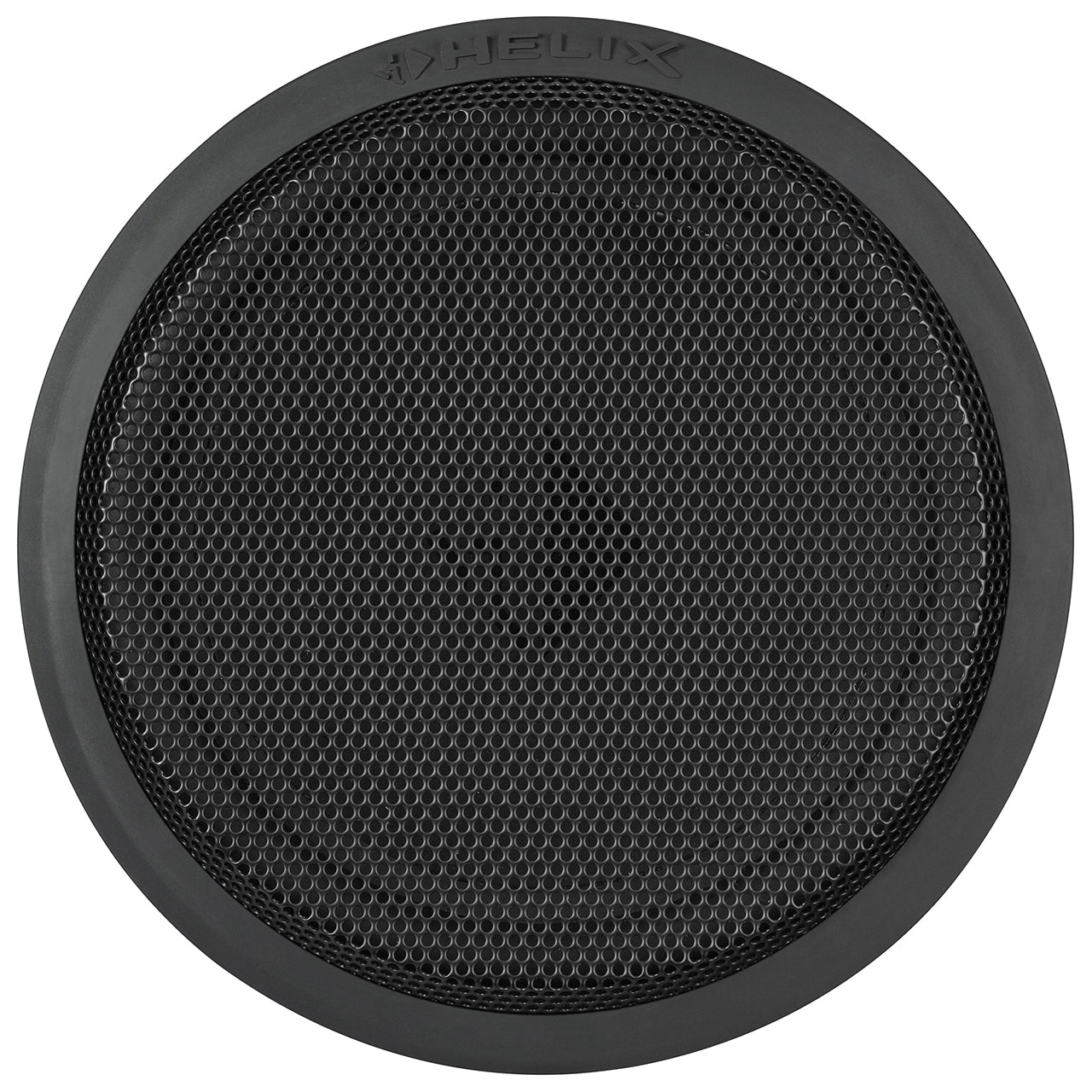

Enclosure connection terminal, grille and gasket included in delivery

Technical data

		IK S10-DVC2 – 2 x 2 Ohms
Power handling RMS / max.	P	300 / 600 Watts
Impedance	Z	2 x 2 Ω
DC resistance	Re	2 x 1.6 Ω
Resonance frequency	Fs	34 Hz
Mechanical Q factor	Qms	6.37
Electrical Q factor	Qes	0.49
Total Q factor	Qts	0.45
Compliance	Cms	198 μm/N
Equivalent air volume	Vas	34 L
Force factor	BI*	12.7 Tm
Sensitivity	SPL	90.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m
Cone area	Sd	353 cm²
Moving mass	Mms	112 g
Cone material		Sandwich paper cone
Mechanical resistance	Rms	3.73 kg/s
Voice coil diameter	ø	50.8 mm
Voice coil winding height		18 mm
Max. linear excursion	Xmax	+/- 6.0 mm
Outer diameter	ø	262 mm / 10.31"
Installation diameter	ø	229 mm / 9.01"
Installation depth		84.5 mm / 3.33"

$499.00

Includes GST
