Helix

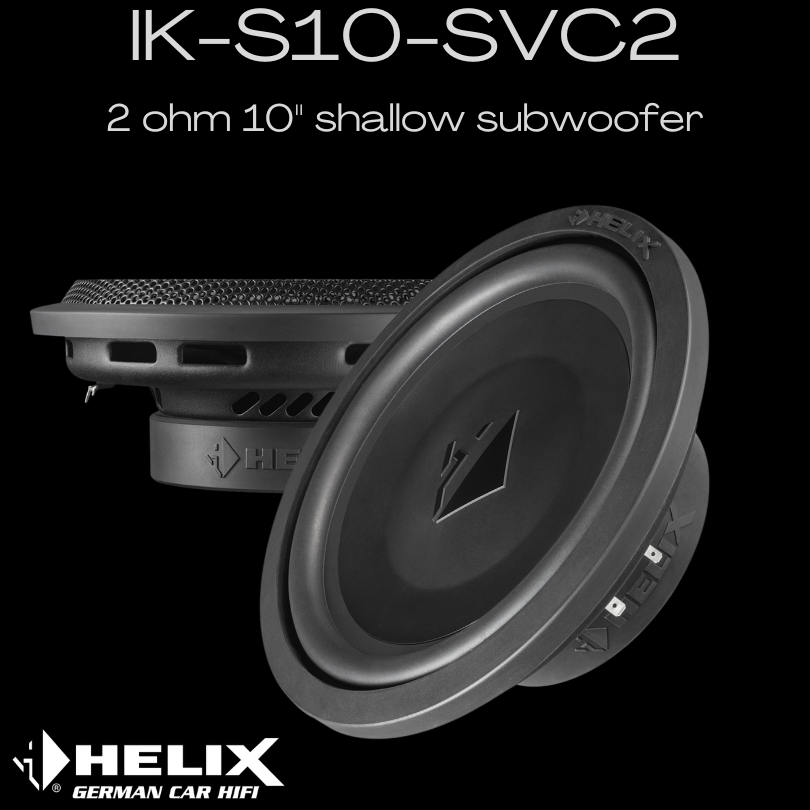

Helix IK-S10-SVC2 shallow 10" sub

IK-S10-SVC2

Shallow 10" single voice coil subwoofer

Features

  • Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
  • 2 Ohm single voice coil
  • Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations
  • Extremely stiff sandwich paper cone
  • Long-excursion rubber surround for highest mechanical rating
  • Rugged magnet cover with HELIX lettering for perfect magnet protection
  • Enclosure connection terminal, grille and gasket included in delivery

Technical data

    IK S10-SVC2 – 1 x 2 Ohms
Power handling RMS / max. P 300 / 600 Watts
Impedance  Z 1 x 2 Ω
DC resistance  Re 2.0 Ω
Resonance frequency  Fs 37 Hz
Mechanical Q factor  Qms 7.61
Electrical Q factor  Qes 0.54
Total Q factor Qts 0.51
Compliance Cms 150 μm/N
Equivalent air volume Vas 26 L
Force factor  B*I 10.1 Tm
Sensitivity  SPL 93.0 dB @ 2.83V / 1m
87.0 dB @ 1W / 1m
Cone area  Sd 353 cm²
Moving mass  Mms 119 g
Cone material   Sandwich paper cone
Mechanical resistance  Rms 3.7 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height   18 mm
Max. linear excursion  Xmax +/- 6.0 mm
Outer diameter ø 262 mm / 10.31"
Installation diameter ø 229 mm / 9.01"
Installation depth   84.5 mm / 3.33"
$499.00
/
Includes GST
