IK S12 DVC2

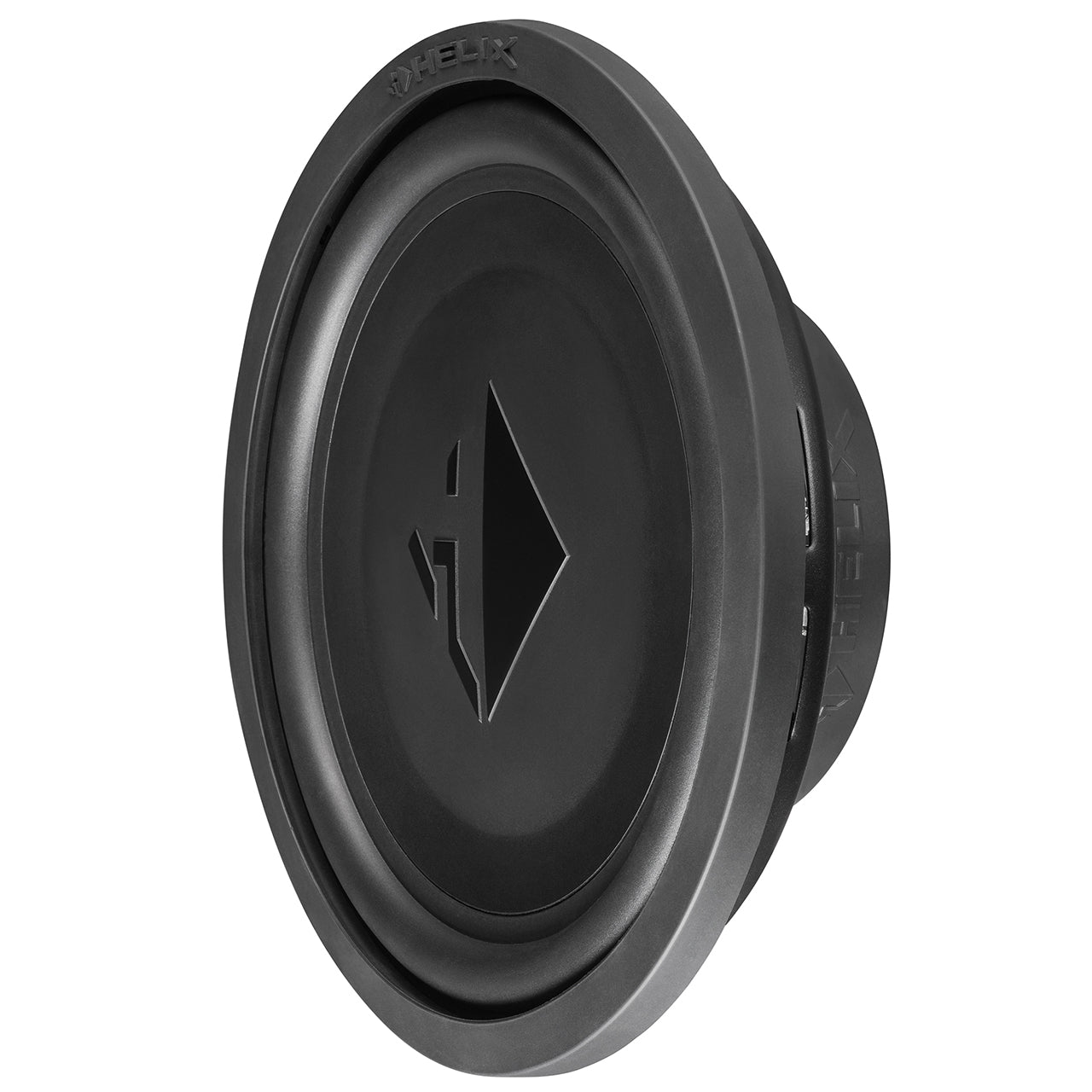

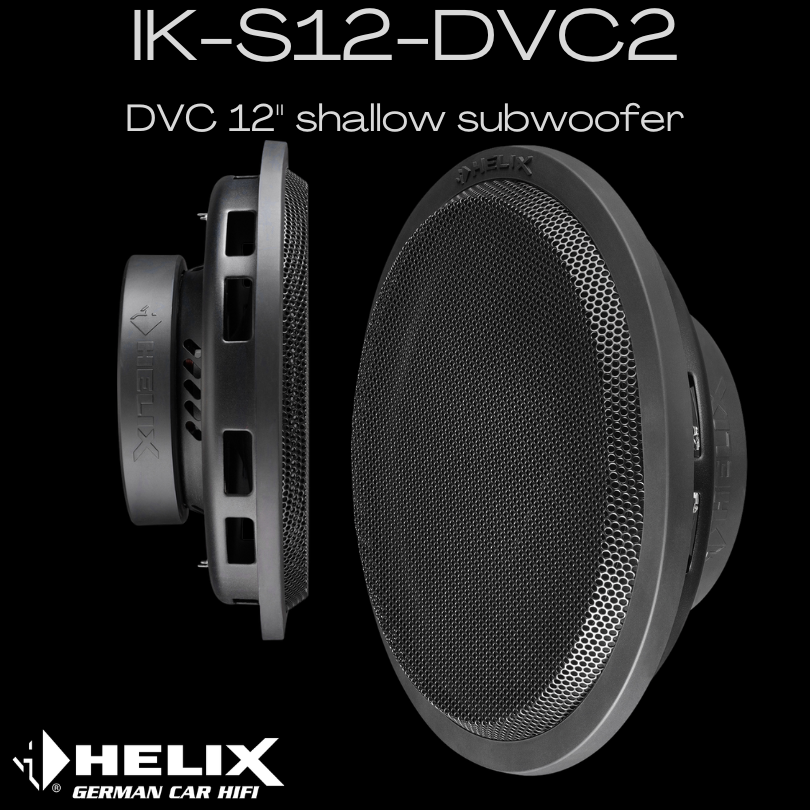

Dual voice coil 12" shallow subwoofer



Features

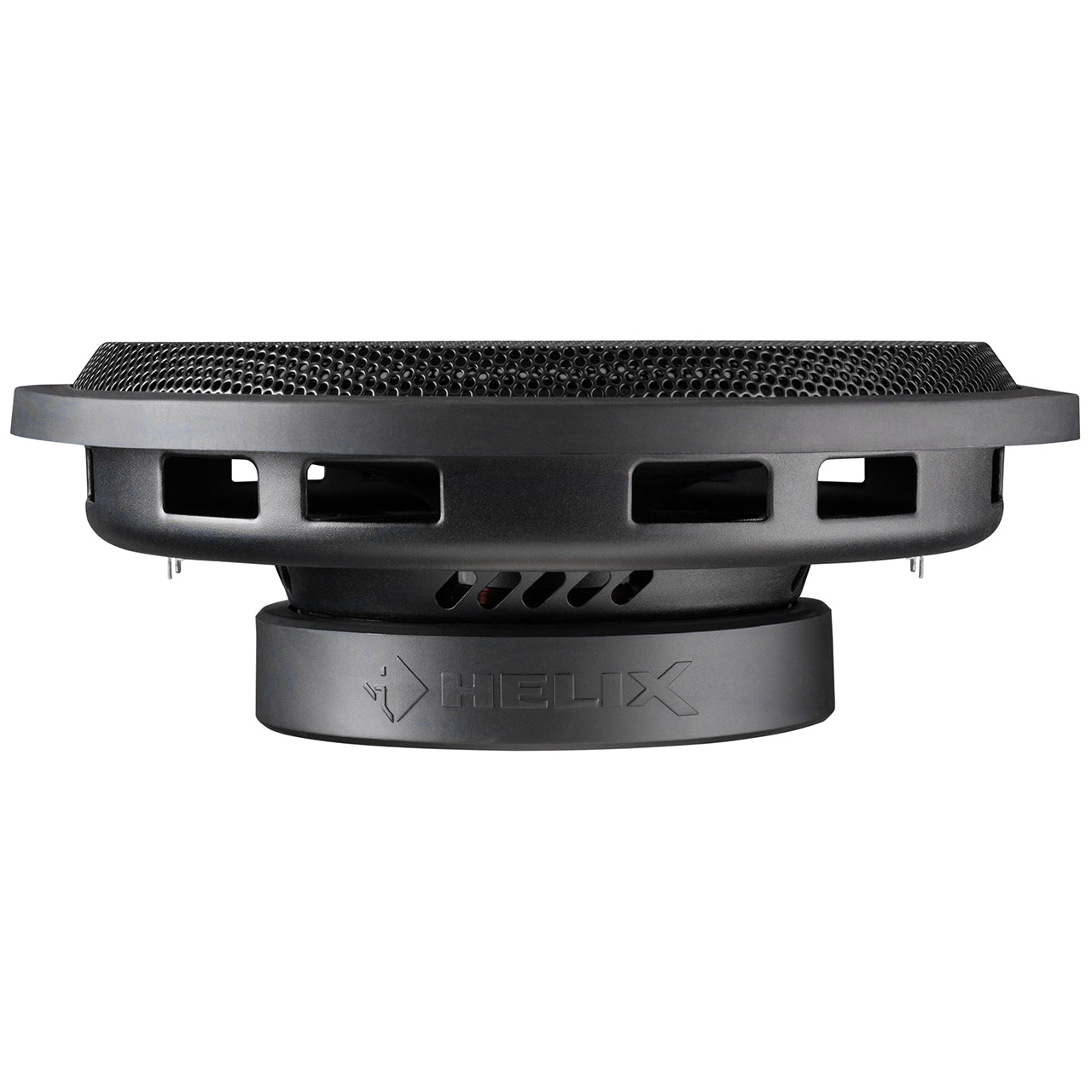

  • Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
  • 2 x 2 Ohms dual voice coil for flexible system configuration
  • Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations
  • Extremely stiff sandwich paper cone
  • Long-excursion rubber surround for highest mechanical rating
  • Rugged magnet cover with HELIX lettering for perfect magnet protection

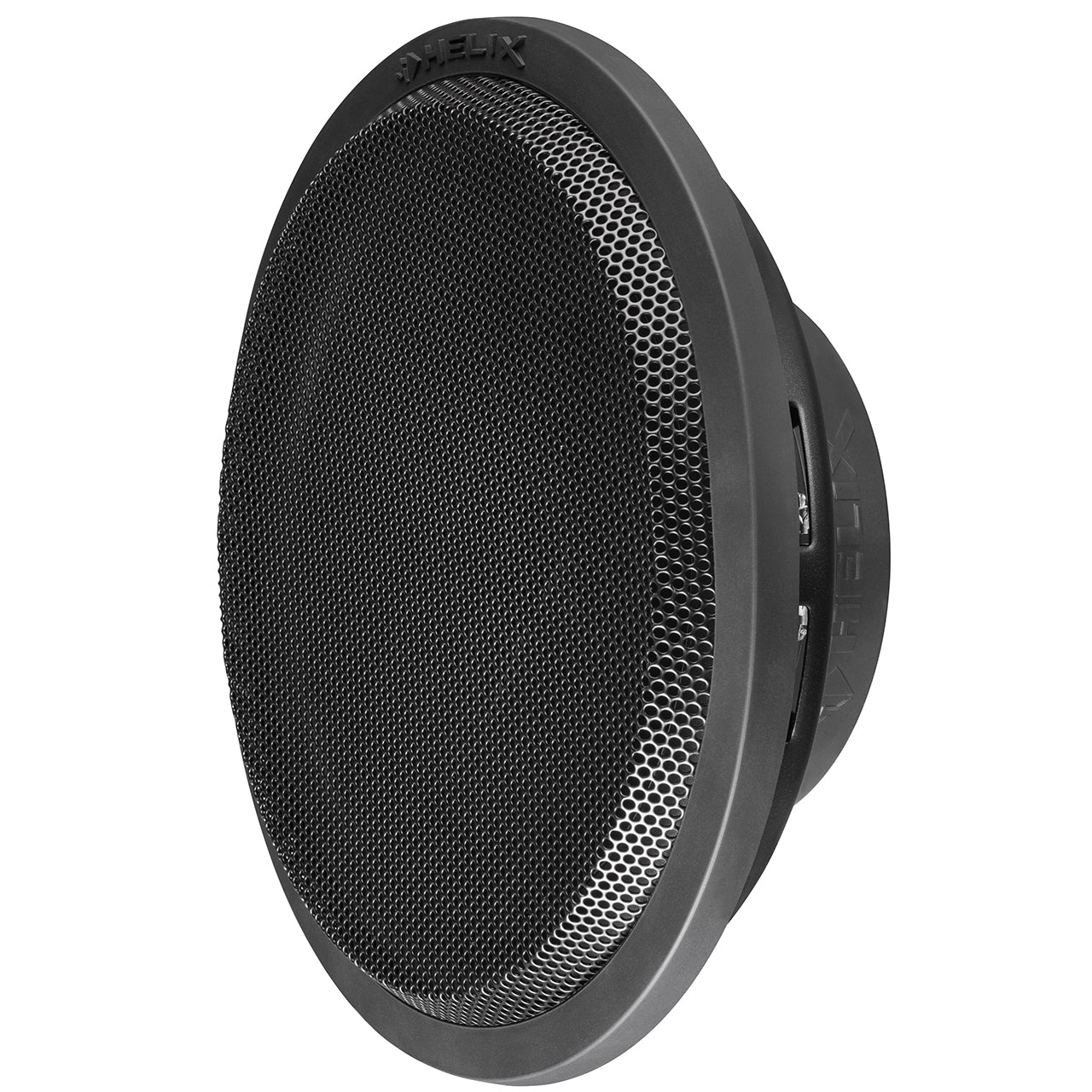

  • Enclosure connection terminal, grille and gasket included in delivery

Technical data

Power handling RMS / max. P 300 / 600 Watts
Impedance  Z 2 x 2 Ω
DC resistance  Re 2 x 1.8 Ω
Resonance frequency  Fs 36 Hz
Mechanical Q factor  Qms 5.41
Electrical Q factor  Qes 0.52
Total Q factor Qts 0.48
Compliance Cms 95 μm/N
Equivalent air volume Vas 40 L
Force factor  B*I 17.2 Tm
Sensitivity  SPL 91.0 dB @ 2.83V / 1m
88.0 dB @ 1W / 1m
Cone area  Sd 523 cm²
Moving mass  Mms 220 g
Cone material   Sandwich paper cone
Mechanical resistance  Rms 7.9 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height   24 mm
Max. linear excursion  Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44"
Installation diameter ø 276.8 mm / 10.90"
Installation depth   95.5 mm / 3.76"
$599.00
/
Includes GST
