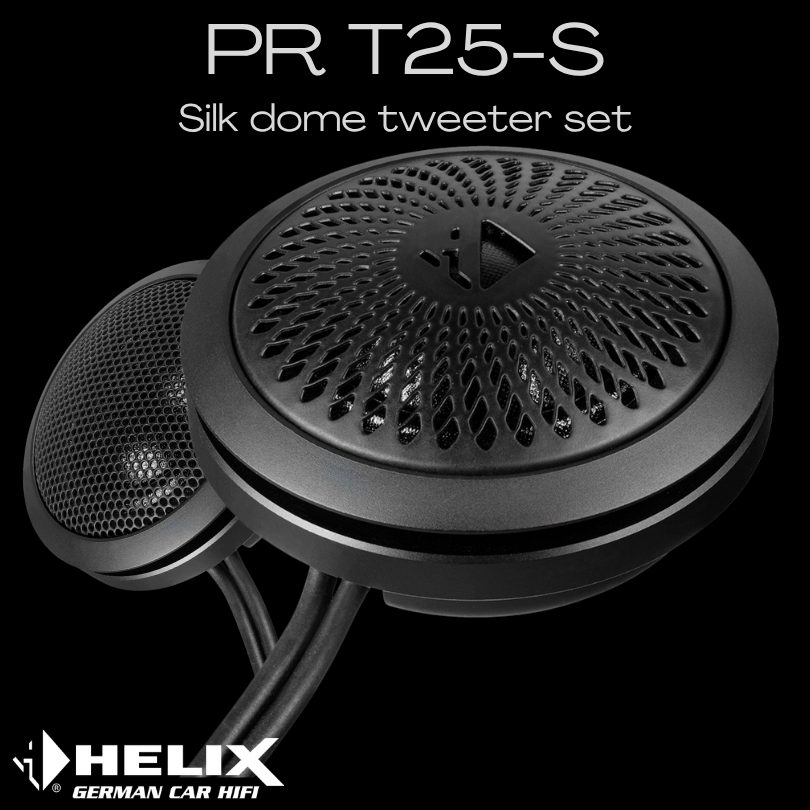

PR T25-S

"Pure series" silk dome tweeters

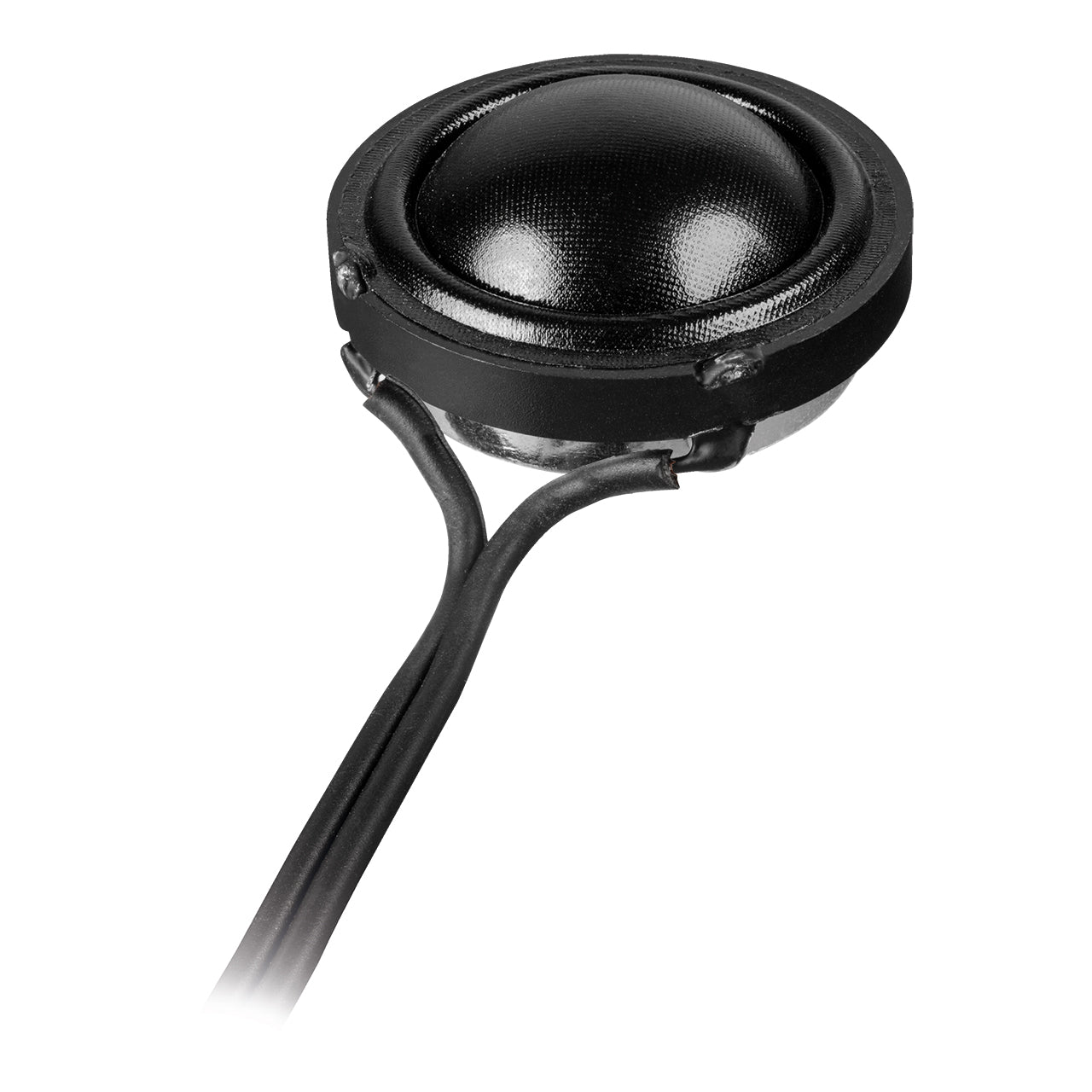

1” / 25 mm premium tweeter with coated silk-dome for precise treble response with finest details and an accurate, natural sound reproduction
Compact design with multiple mounting options for universal installation

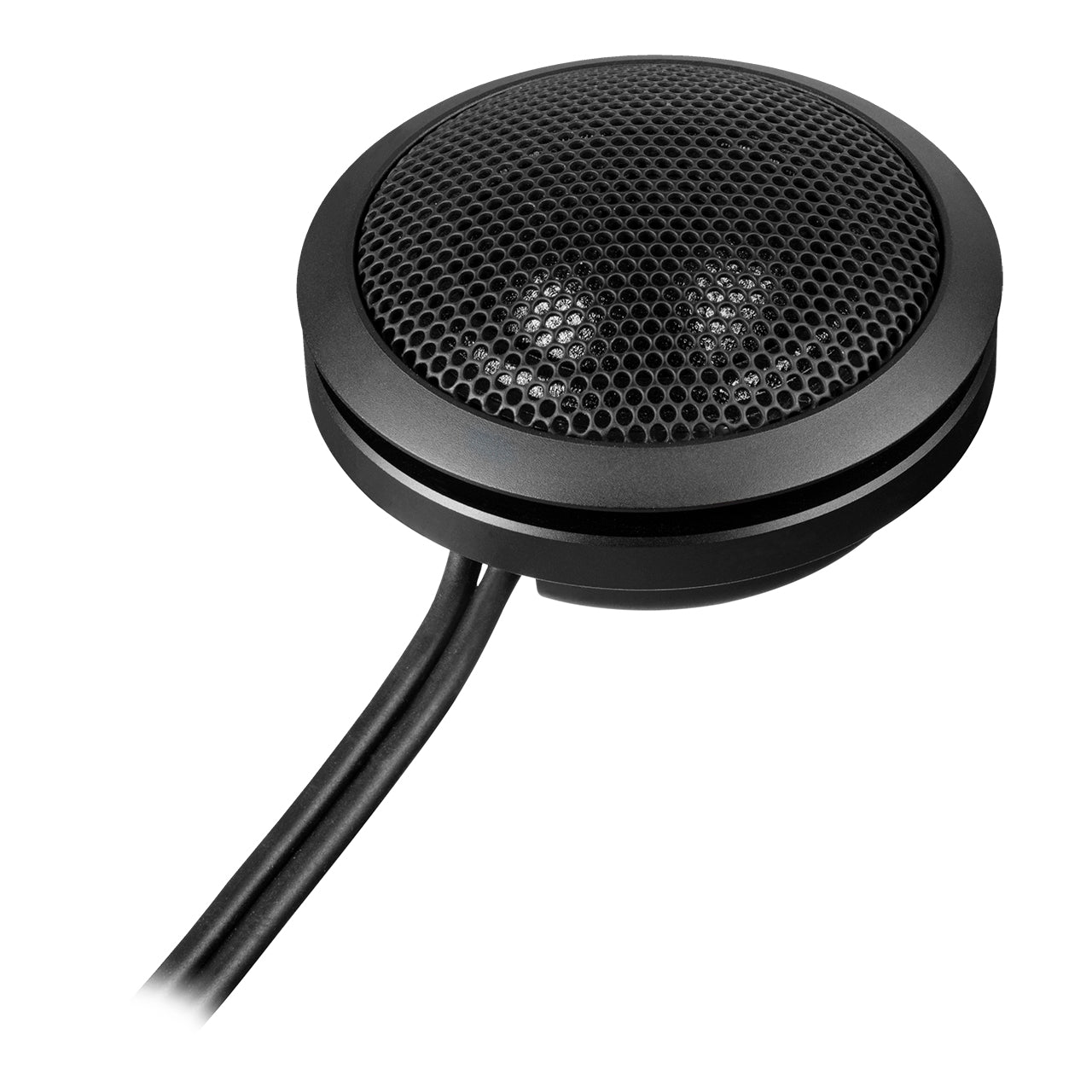

Anodised aluminium flush mount housing with solid mounting ring for discreet installation

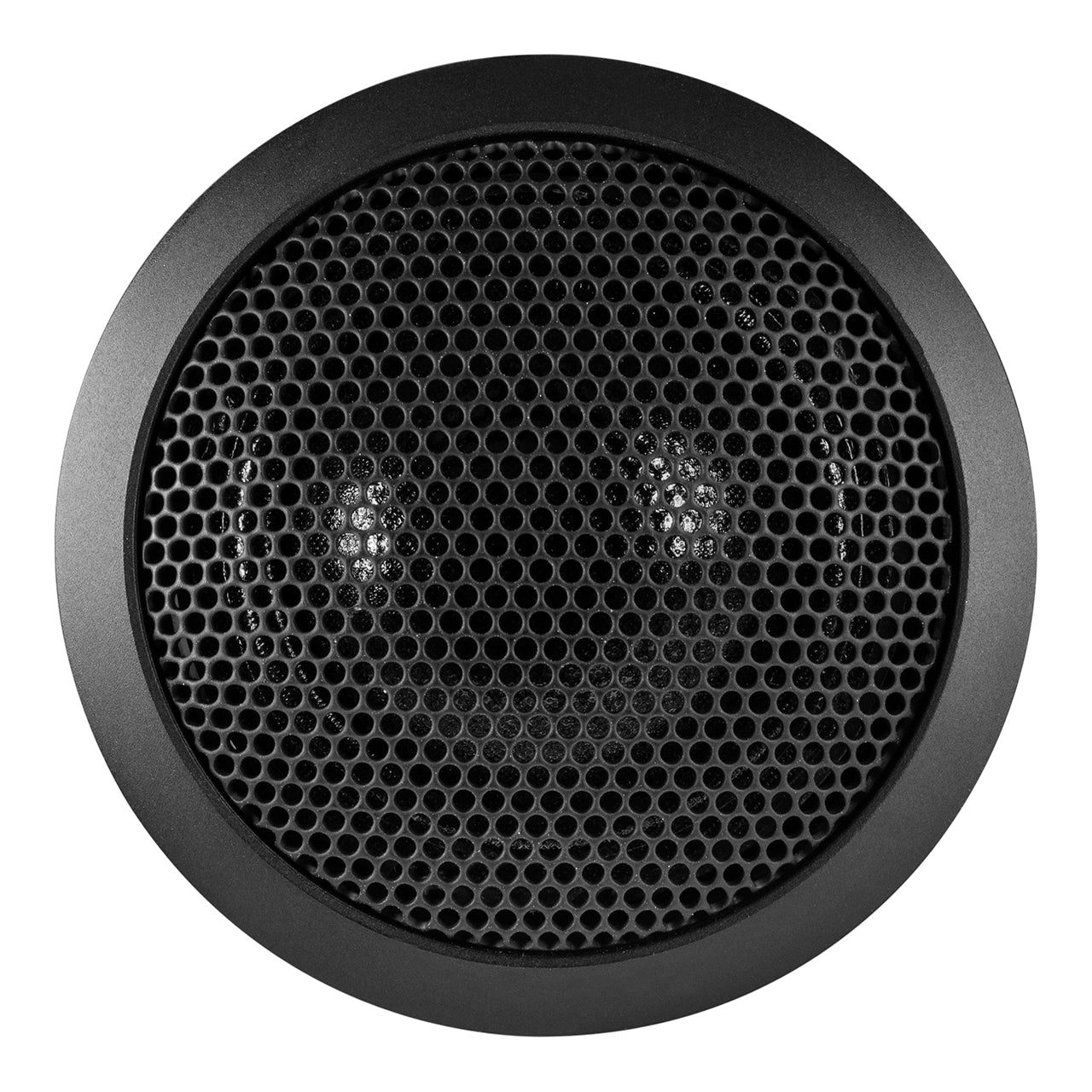

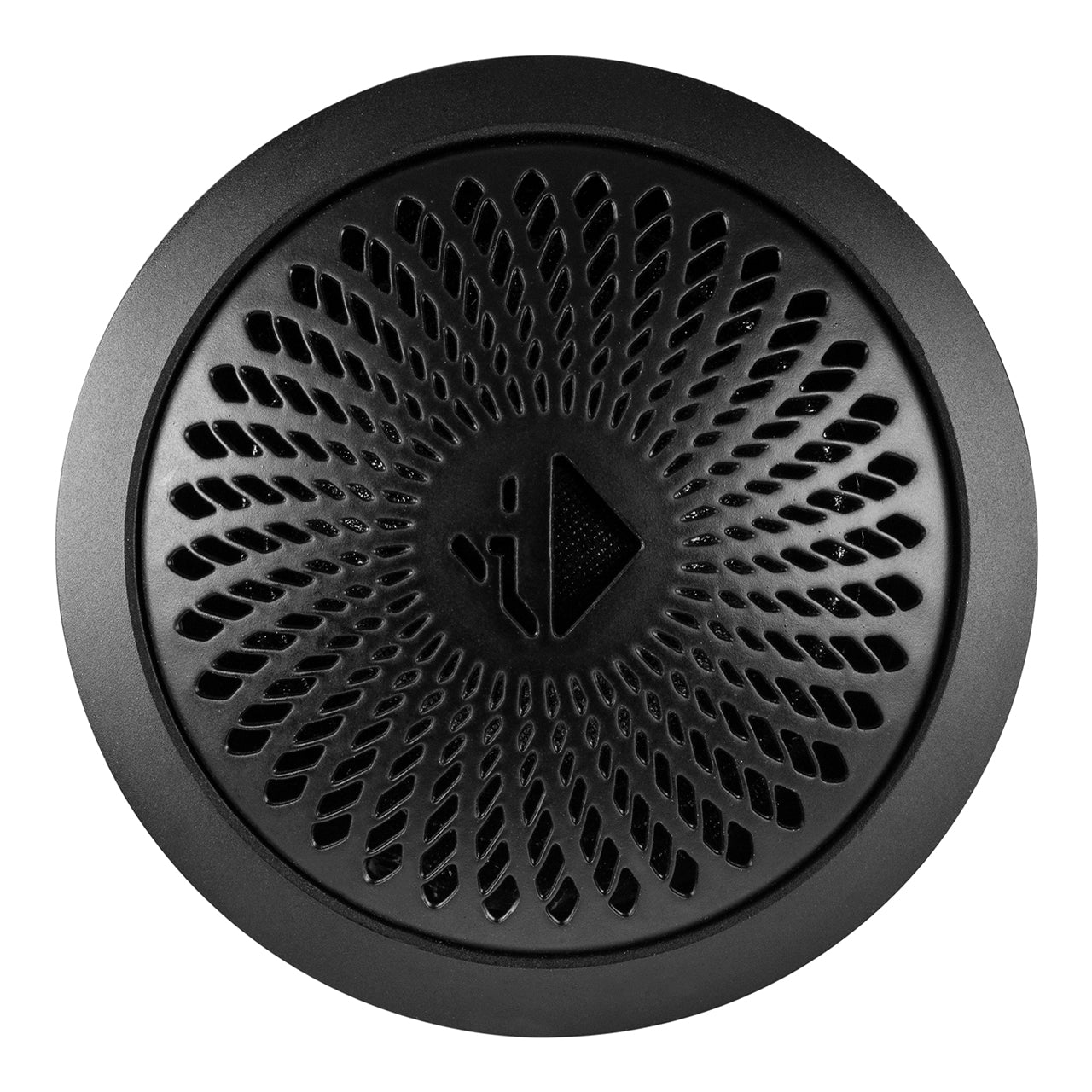

Cover grille included in two exclusive, swappable designs
Lowest manufacturing tolerances and exclusive use of premium materials
Highly efficient neodymium magnet for an optimal linear magnetic flux
High-grade aluminum tweeter pod (PR ATP25) optionally available

Impedance	Z	4 Ω
DC resistance	Re	3.4 Ω
Frequency response		2,500 Hz - 25,000 Hz
Resonance frequency	Fs	1,400 Hz
Sensitivity	SPL	92 dB @ 2,83V / 1m 89 dB @ 1W / 1m
Voice coil diameter	ø	25 mm
Cone area	Sd	4.9 cm²
Moving mass	Mms	0.3 g
Cone material		Coated silk dome
Outer diameter (more data see data sheet)	ø	37.7 mm / 1.48"
Installation diameter (more data see data sheet)	ø	37.7 mm / 1.48"
Installation depth (more data see data sheet)		10.6 mm / 0.42"

Recommended crossover frequencies for the highpass
Slope		Minimum crossover frequency
6 dB/Octave		4,000 Hz
12 dB/Octave		> 3,000 Hz
24 dB/Octave		> 2,500 Hz

$349.00

Includes GST
